Alta Labs AP6 Pro WiFi 6 4x4 Cloud Managed Ceiling/Wall Indoor Access Point
Details
Details
Summary
- WiFi 6
- Bluetooth (For Easy Adoption)
- Content Filtering
- PoE+
- 2.4 GHz MIMO 2x2
- 5 GHz MIMO 4x4
- 6.3 Gbps Max WiFi Throughput
- 4096 QAM
- IP54 RATED
Overview

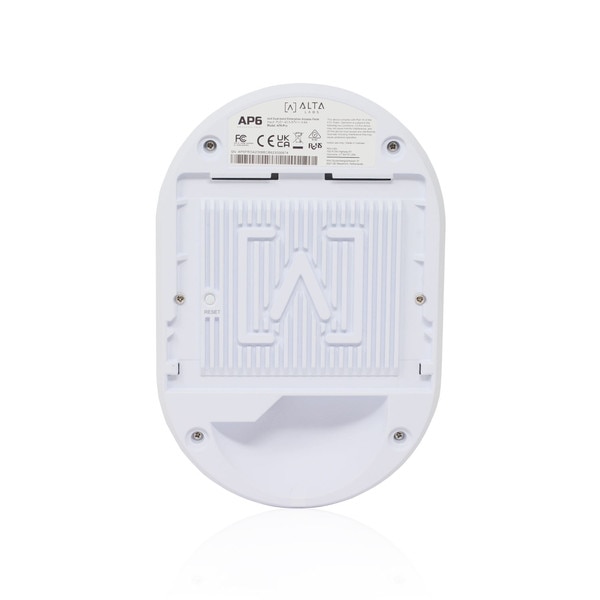

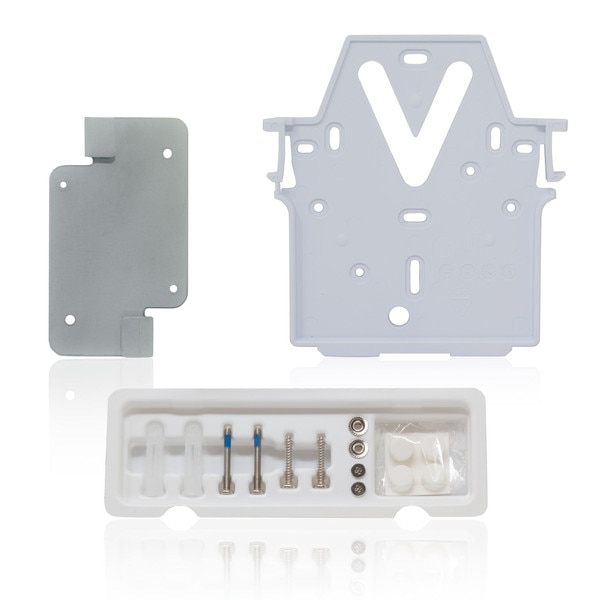

The Alta Labs AP6-Pro Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments. The AP6-Pro is IP54-rated for higher end commercial environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware featuring our proprietary QuickMountTM technology for quick, simple mounting.
Installing the AP6 and AP6-PRO
Alta Labs Cloud Management Platform: Web
Features
- WiFi 6 With WiFi 7 Benefits
- Superior Range and Performance
- IP54 Rated
- Scalable Cloud-Based Management
- Mobile App
- Multi-Password Authentication
- DPI Engine
- Hotspot Functionality
- On-The-Fly Changes and Scanning
- Wireless Network Color Coding
- SSID Broadcasting Flexibility
- Customizable Dashboard
- Status Snapshots
- Device Cards
Specifications
| Specifications for: ALT-AP6-PRO: Alta Labs AP6 Pro WiFi 6 4x4 Cloud Managed Ceiling/Wall Indoor Access Point | |
|---|---|
| Mechanical | |
| Dimensions | 190 x 125 x 32 mm (7.5 x 4.9 x 1.25") |
| Weight | 0.4 kg (0.9 lbs) |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Mount Material | Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |
| Weatherproofing | IP54 |
| Hardware | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
| Supported Voltage Range | 42.5-57V DC |
| Max. Power Consumption | 25W |
| Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS |
| MIMO | 2.4 GHz: 2 x 2, 5 GHz: 4 x 4 |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps |
| Antenna Gain | 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi |
| Mounting | Wall, ceiling, drop-ceiling, table top |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| Software | |
| WiFi Standards | 801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300 |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable To Stadiums | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| Supported Data Rates | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (Up to MCS 31) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13) |
