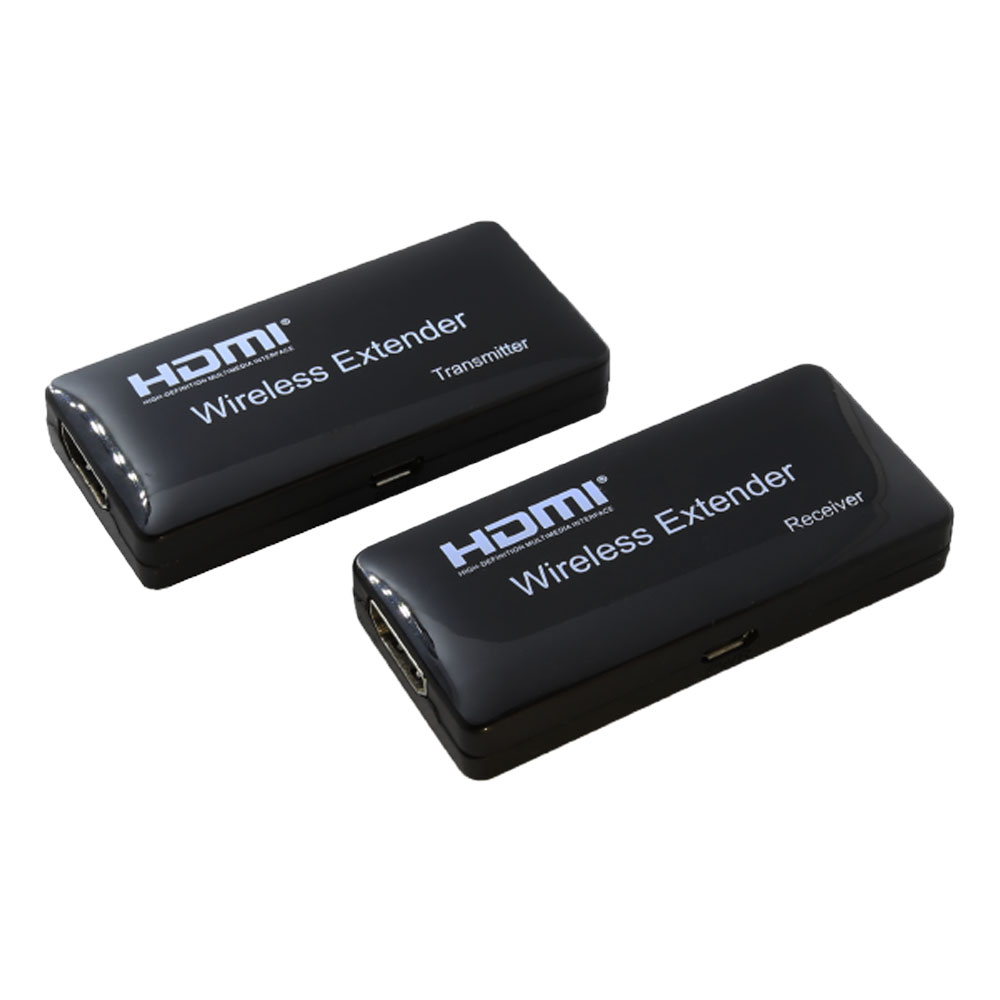

SyncAV 1080p@60Hz Wireless HDMI Extender – Transmitter and Receiver up to 150 m

Item Code: SSAV-HDMI-WIRELESS

This HDMI Wireless extender uses 2.4G and 5G modules to enable high-speed, high performance wireless communication among consumer electronics, computer and mobile devices. It combines high bandwidth capacity and strong error correction capability to transmit HD video. It transmit the signal up to 150m in the open area, also go through the wall.

47 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Overview

Overview

Connection and Operation

  1. Connect the HD source to the input of the wireless extender TX with 1 HDMI cable
  2. Connect the output of the wireless extender RX to the display device with 1 HDMI cable
  3. Connect power to the TX and RX with Micro USB cable

Features

Features

  • Support HDCP 1.3
  • Support standard IEEE802.11a/b/g/n
  • Support the highest rate 1.485G and TMDS clock up to 148.5 Mhz
  • Working in 2.4G/5G frequency band, not easily disturbed to wireless signals
  • The maximum range is 150 meters in open space without any obstacles. However, when passing through walls, the typical range is up to 40 meters.

Specifications

Specifications

Specifications for: SSAV-HDMI-WIRELESS: SyncAV 1080p@60Hz Wireless HDMI Extender – Transmitter and Receiver up to 150 m
HDMI ResolutionUp to 1920 x 1080p/60Hz
Stereo audio formatSupported
Max bandwidth148.5 MHz
Max band rate1.485 Gbps
Input cable distance(1080p resolution) ≤8 m AWG26 HDMI standard cable
Output cable distance(1080p resolution) ≤8 m AWG26 HDMI standard cable
Transmitter Max working current800mA
Receiver Max working current500mA
Operating Temperature range-15°C to +55°C
Dimensions (L x W x H)70 mm x 33 mm x 13 mm
Weight25.7 g x 2
