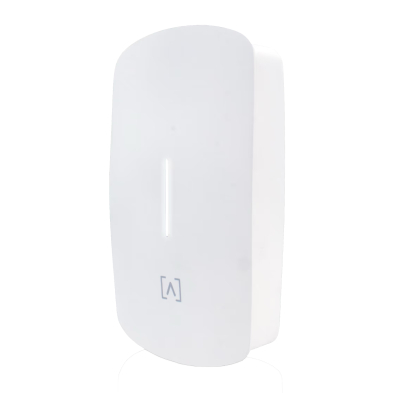

| Specifications for: ALT-AP6W: Alta Labs 4-Stream Wall Mount Enterprise Access Point |
|---|
| MECHANICAL |
|---|
| Dimensions | 156.1 x 90 x 43.9 mm (6.15 x 3.54 x 1.73") |
| Weight) | 0.312 kg (0.68 lbs |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Aluminum |
| Mount Material | Polycarbonate |
| HARDWARE |
|---|
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (3) GbE RJ45 Ports |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| PoE | 802.3af/at |
| Power Supply | PoE+ Enabled Network Switch, 48V, 0.5A PoE Adapter, or a 12VDC
1.5A Power Supply (Optional - Not Included) |

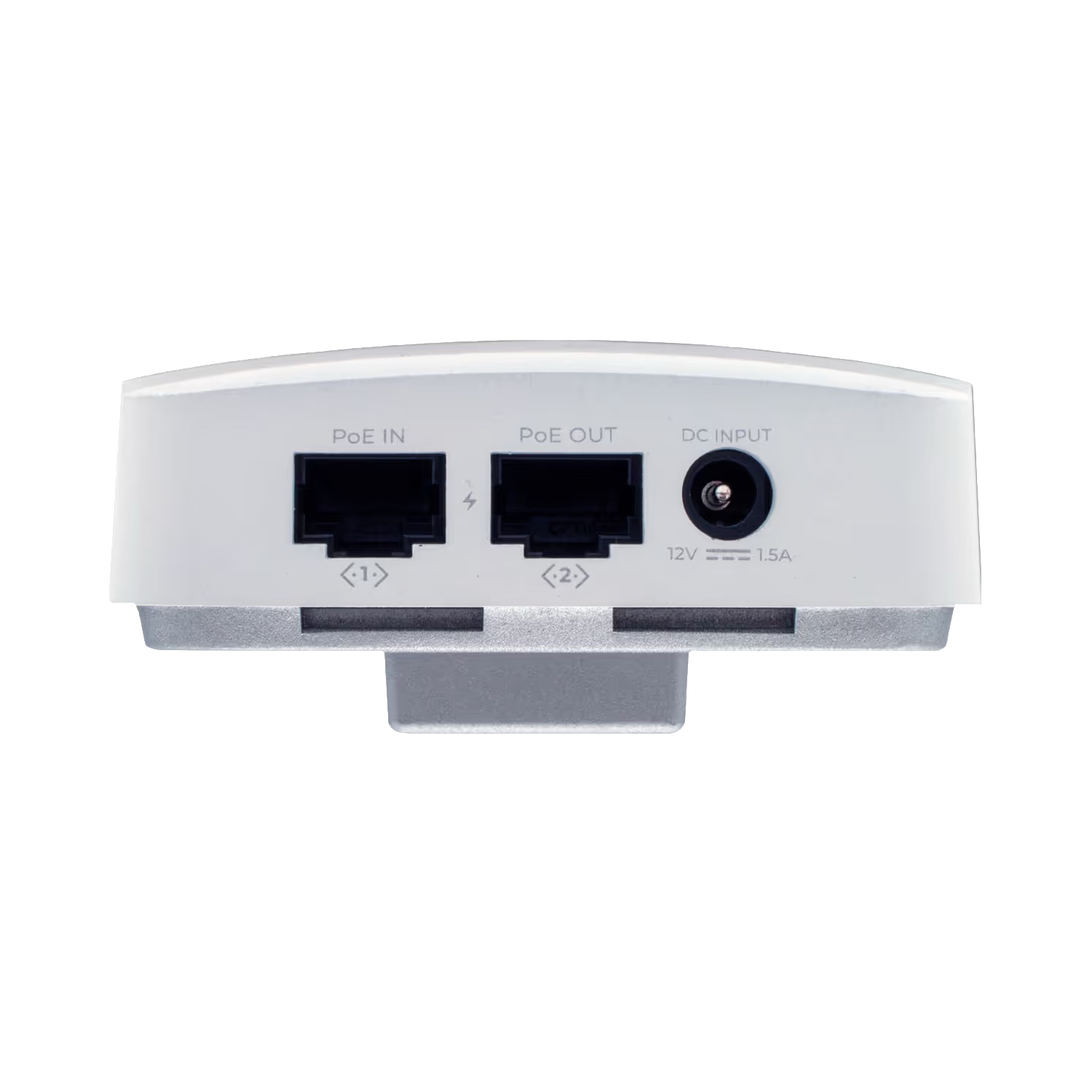

| PoE Pass Through | Yes |

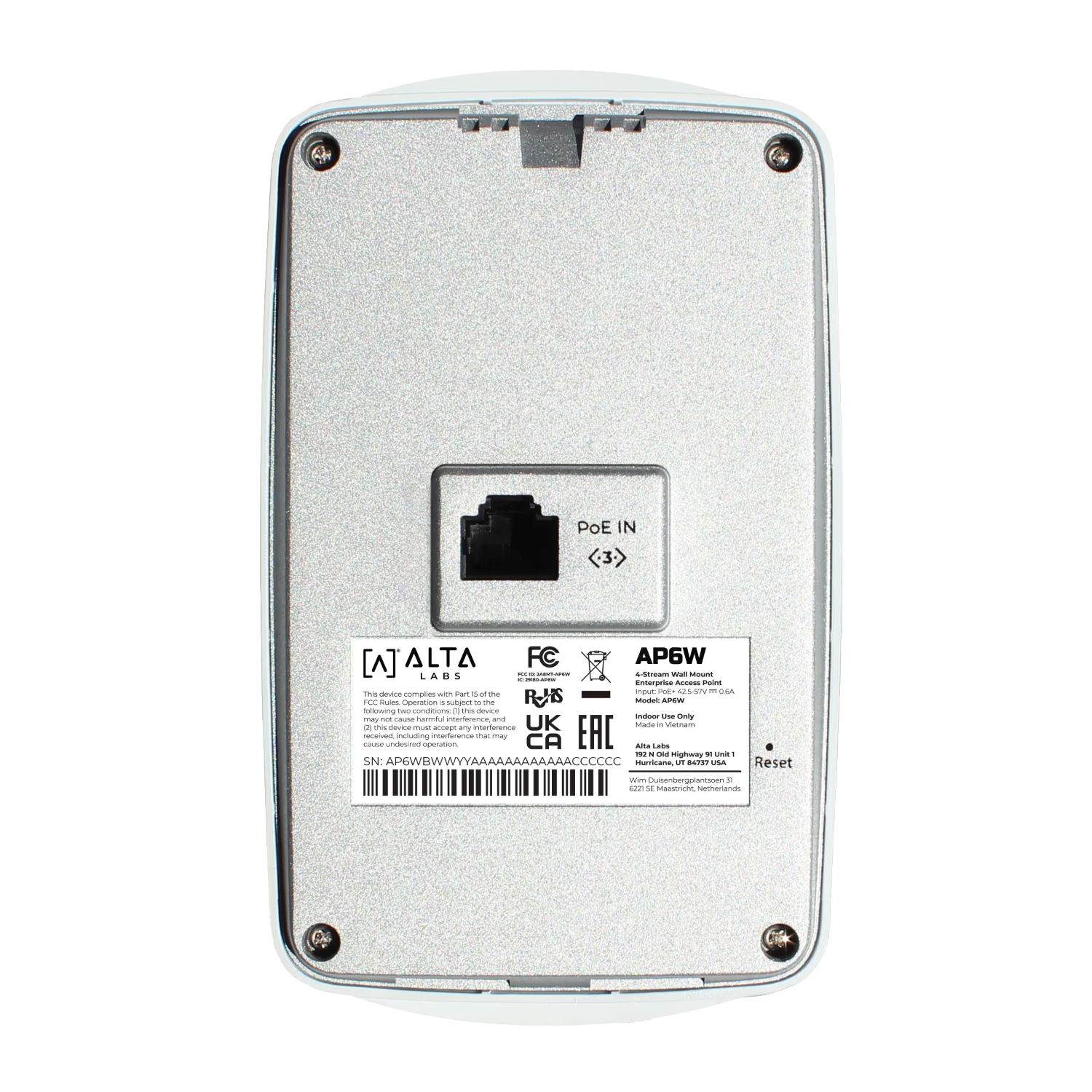

Multi Direction PoE Input
(Back and Bottom) | Yes |
| Supported Voltage Range | 42.5-57V DC |
| Max. Power Consumption | 14.2W |
| Max. Transmit Power | 2.4 GHz: 20 dBm @2NSS, 5 GHz: 20 dBm @2NSS |
| SU-MIMO | (2) Spatial Stream Single User (SU) MIMO for up to 574 Mbps Wireless data Rate with HE40 Bandwidth to a 2x2 Wireless Client Device under the 2.4 GHz Radio
(2) Spatial Stream Single User (SU) MIMO for up to 1,200 Mbps Wireless Data Rate with VHT80 to a 2x2 Wireless Device under the 5 GHz Radio |
| MU-MIMO | (2) Spatial Streams Multiple (MU)-MIMO up to 1,200 Mbps Wireless Data Rate for Transmitting to (2) streams MU-MIMO 11ax Capable Wireless Client devices under 5 GHz Simultaneously
(2) Spatial Streams Multiple (MU)-MIMO up to 574 Mbps Wireless Data Rate for Transmitting to (2) Streams MU-MIMO 11ax Capable Wireless Client Devices under 2.4 GHz Simultaneously |
| Throughput Rate | 2.4 GHz: Up to 574 Mbps, 5 GHz: Up to 2.4 Gbps |
| Antenna Gain | 2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi |
| Mounting | Wall |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 90% Noncondensing |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| SOFTWARE |
|---|
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-Personal (PSK), WPA3-Personal (SAE), WPA-Enterprise (WPA2/WPA3) |
| SSID | 8 Per Radio |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 250+ |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| AltaPass | Yes |
| DPI | Yes |
| Content Filtering | Yes |
| Hotspot Functionality | Yes |
| Customizable Dashboard | Yes |
| Status Snapshots | Yes |
| Device Cards | Yes |
| SUPPORTED DATA RATES |
|---|
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (Up to MCS 15) |
| 802.11ac | 6.5 Mbps to 867 Mbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 574 Mbps, 5 GHz: 18 Mbps to 2.4 Gbps (Up to MCS 11) |
