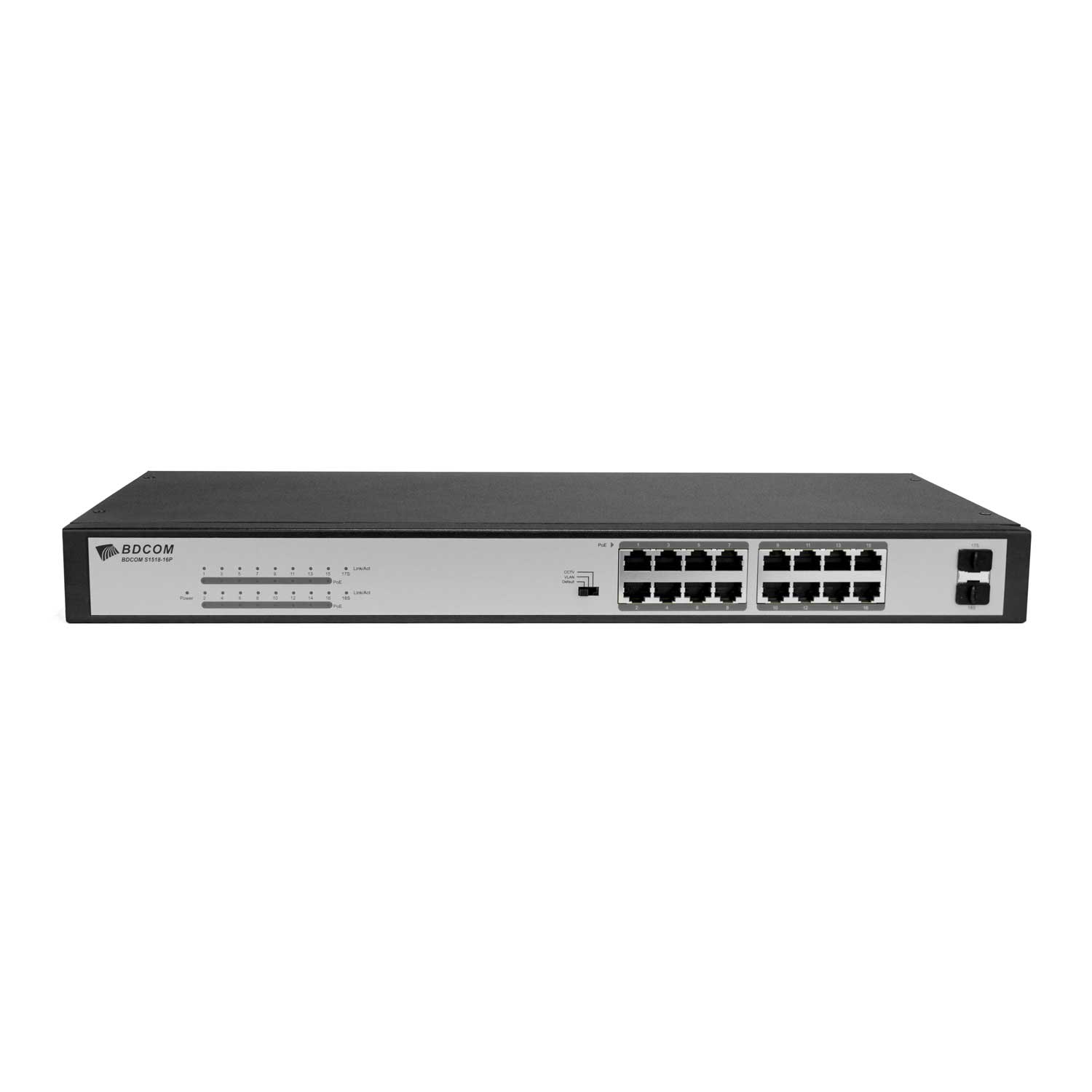

BDCOM 16 Port 10/100/1000 Mb/s POE + 2 SFP Port Gigabit Multi-functional PoE Switch

Item Code: BD-S1518-16P

  • 16 GE PoE ports + 2 GE SFP ports
  • Built-in AC power supply
  • Functional dip switch:
    • Default – standard working mode
    • CCTV – 1~8 port extension
    • VLAN – 1~16 port isolation
  • Dimensions (W×D×H)(mm): 440 × 208 × 44
2 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Overview

Overview

BDCOM S1500 Series is a full-gigabit smart POE switch with a large buffer memory introduced by BDCOM. It is designed for the video surveillance and wireless coverage in the medium and small networks.

BDCOM S1500 Series has three models: S1510-8P, S1518-16P and S1526-24P, which meets the need of networks of different scales.

Features

Features

Product Characteristics

Switching Characteristics

  • Non-block switching architecture and wire-speed forwarding supported by all ports
  • Large buffer memory with no video interruption
  • IEEE802.3x full duplex flow control and Back pressure half-duplex flow control
  • Multi functional dial-code which meets the requirement of different networking

PoE Characteristics

  • Meet the standard of IEEE802.3af/at, the max PoE power of a single port is 30W
  • Large power PoE power supply, and full-port 802.3af full-load
  • Smart standard 48V PoE power supply, based on the terminal auto-negotiation
  • Short-circuit protection and over current protection

Practicability

  • Integrated professional thunder-proof circuit and high grade thunder-proof design
  • Built-in high quality PoE power supply and stable and secure PoE output
  • Comply with CE, FCC

Usability

  • Plug and play; no need of configuration
  • Indicators on the panel useful for learning the working status of the power supply

Specifications

Specifications

Specifications for: BD-S1518-16P: BDCOM 16 Port 10/100/1000 Mb/s POE + 2 SFP Port Gigabit Multi-functional PoE Switch
Interface
Switching capacity / Forwarding rate36Gbps/27 Mpps
Forwarding modeStorage-and-forward
MAC capacity8K
Port cache4M
POE port16GE
Uplink RJ45NA
Uplink SFP2GE
Jumbo frame9K
Appearance
ChassisDimensions (WxDxH) (mm)440 x 208 x 44
Weight (kg) (empty)2.66
PackageDimensions (WxDxH) (mm)555 x 295 x 88
Weight (kg)3.2
Power260W
Total output BTU (1000BTU/H=293W)887.37
PoE power240W
PoE power standard802.3af/at, max output of the port is 30W
Power supplyBuilt-in AC: 100-220V, 50-60Hz
Working modeStandard switching, 250 meters long-distance transmission
EnvironmentOperating temperature/humidity: -10°C~50°C, 5%-90% non-condensing
Storage temperature/humidity: -40°C~70°C, 5%-95% non-condensing
Fan2
Thunder-proof6KV
AccessoryRackmount kit, power cord
