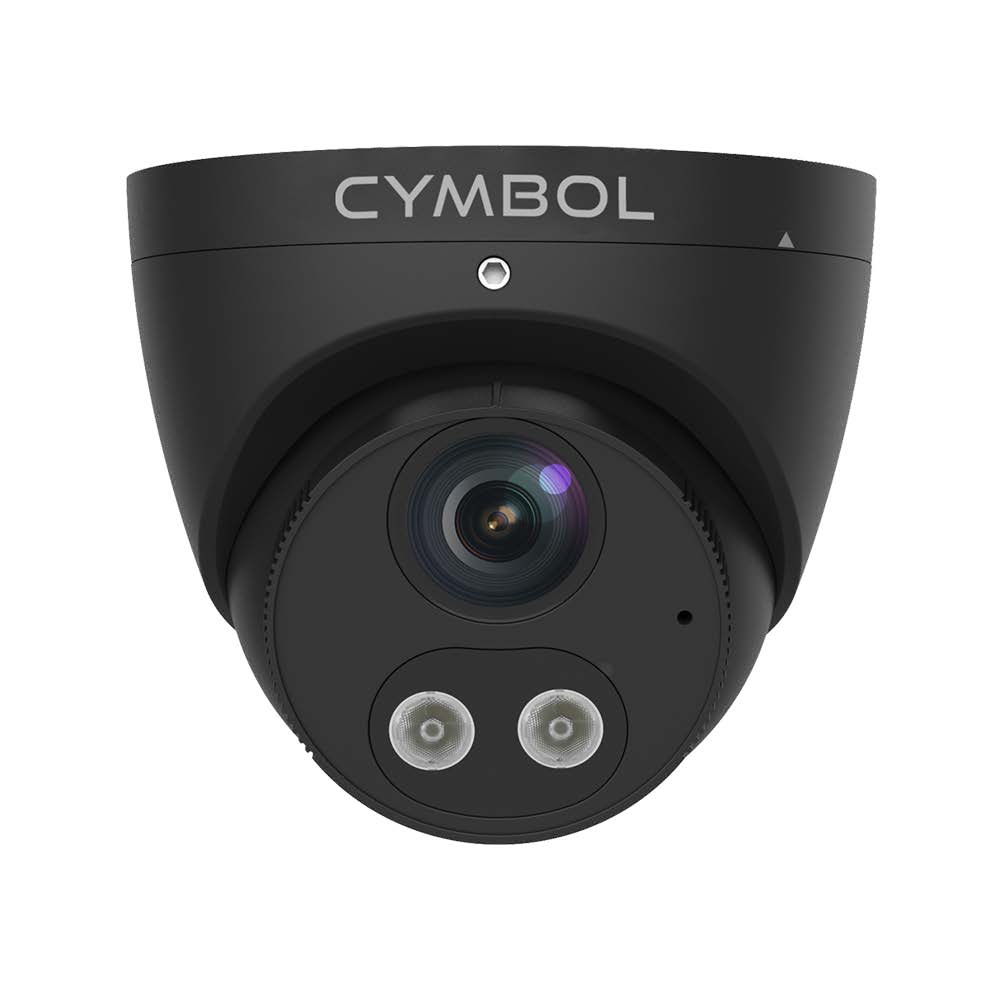

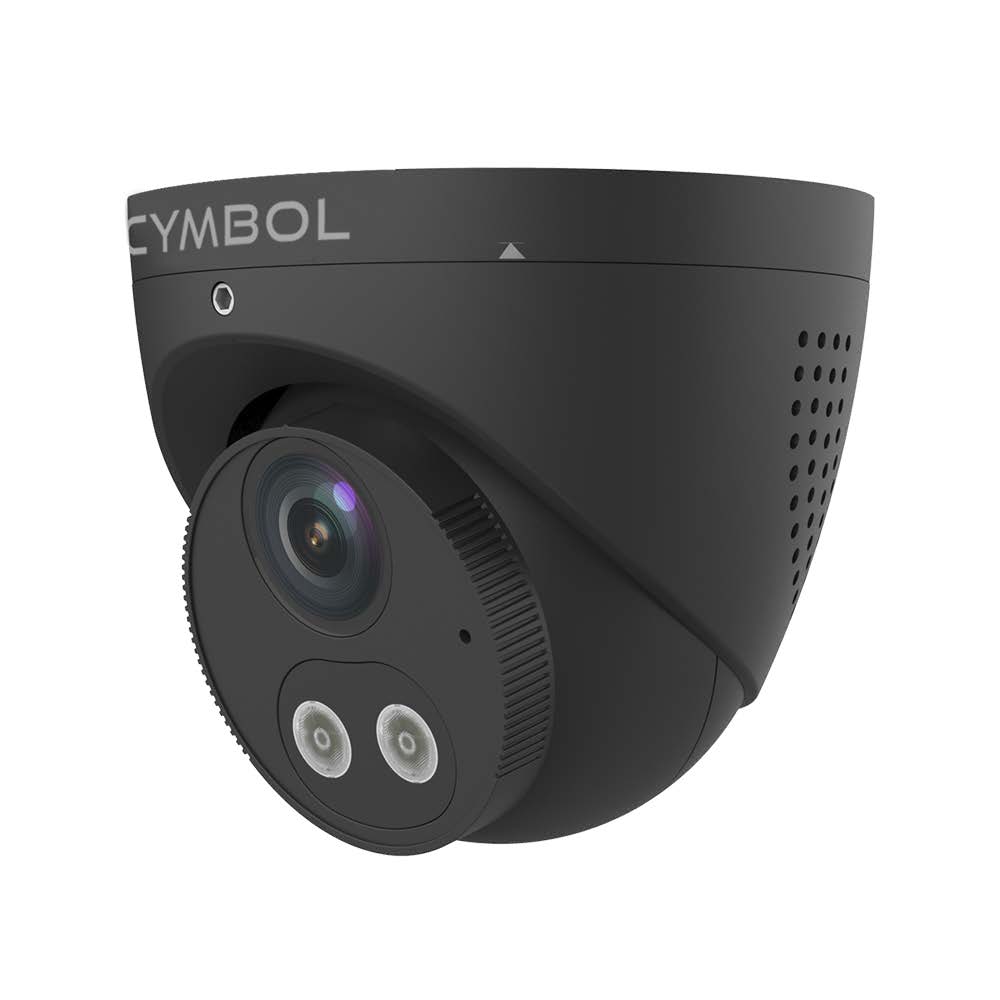

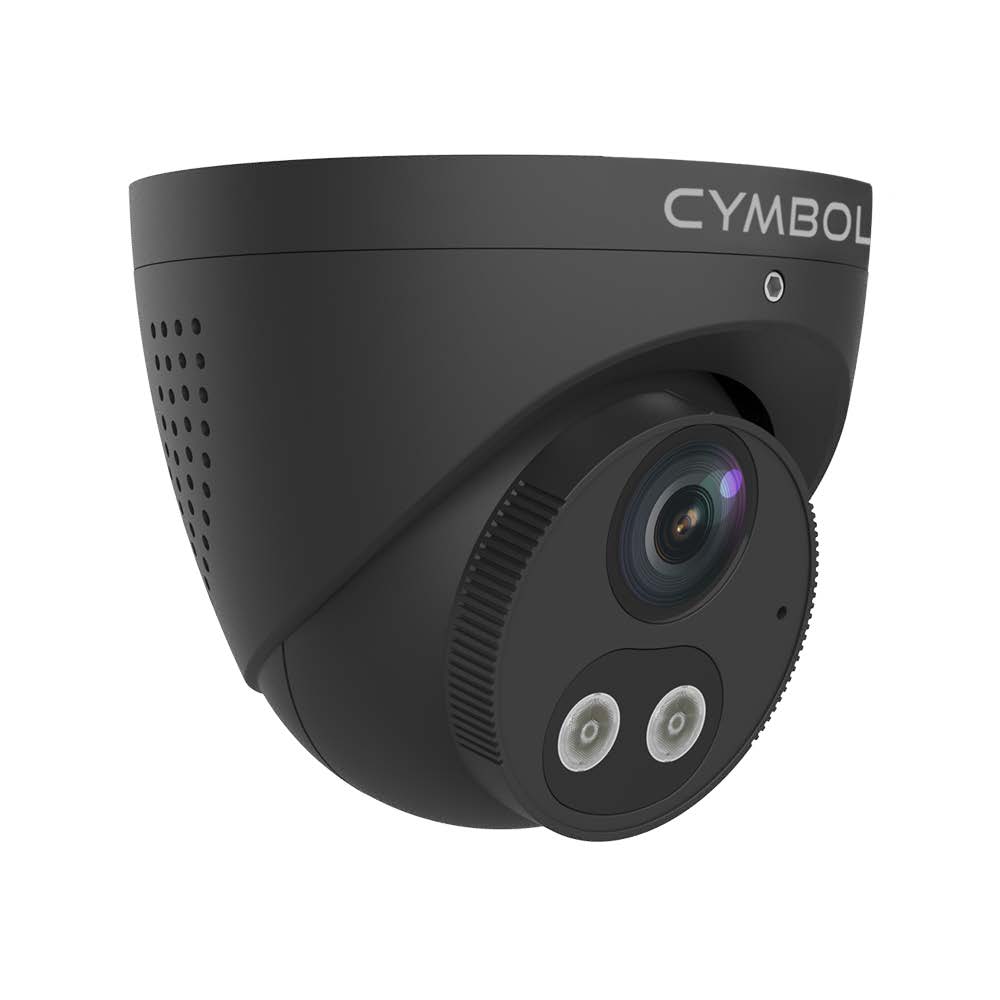

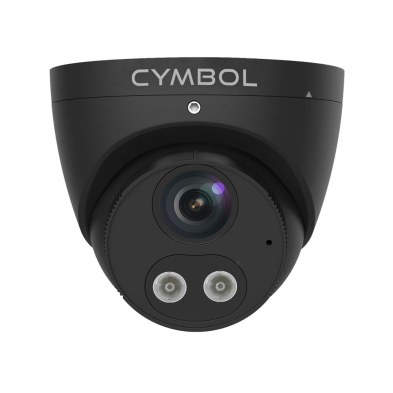

Cymbol 8MP 4K Tri-guard Turret Camera Two-way Audio & Light – Black

Item Code: CY-TR4K2-8TG-BK

130 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Features

Features

Features

  • 8MP (4K) IP PoE Tri-Guard Starlight Camera
  • Active Detterent Camera (Intelligent Light & Audible Warning)
  • Fixed 2.8mm Lens with 1/2.8” CMOS Sensor
  • Built-in Microphone & Speaker
  • Smart IR up to 30m (98ft)
  • 106.7° Wide View
  • IP67 Weather Resistant
  • -30°C ~ 60°C

Analytics

  • Motion Detection: Object moving in field of view
  • Line Crossing: Objects crossing a defined point
  • Intrusion Detection: Objects moving in a defined area
  • Face Detection: Captures facial snapshots
  • Tampering Alarm: Notifies of blocked lens
  • Audio Detection: Detects sudden volume change
  • Enter Area
  • Leave Area

Specifications

Specifications

Specifications for: CY-TR4K2-8TG-BK: Cymbol 8MP 4K Tri-guard Turret Camera Two-way Audio & Light – Black
CAMERA
Sensor1/2.8”, 8.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
WDR120dB
S/N>56dB
LENS
Lens2.8mm@F1.6
IrisFixed
Field of View(H) 106.7°/ (V) 57.1° / (D) 115.7°
DORI DistanceDetect 86.9m
Observe 34.8m
Recognize 17.4m
Identify 8.7m
ILLUMINATOR
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream:
8MP (3840*2160), Max 20fps; 5MP (3072*1728),
Max 30fps; 4MP (2560*1440), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream:
1080P (1920*1080), Max 30fps;720P (1280*720),
Max 30fps; 640*360,Max 30fps; D1 (720*576),
Max 30fps; 2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Third Stream:
D1 (720*576), Max 30fps; 640*360,Max 30fps;
2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image SettingImage rotation, brightness, saturation, contrast,
sharpness, gain adjustable by web browser
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal / Vertical / Horizontal / 180° /
90° Clockwise / 90° Counter-clockwise
DewarpingSupport
HLCSupport
BLCSupport
DefogDigital Defog
ANALYTICS
Smart Analytics w/ S.I.P. Filtering (Supports human, vehicle, & non-motor vehicle Filtering)Cross Line detection, Intrusion detection,
Enter Area detection, Leave Area detection,
Ultra Motion Dectection*
*Only compatible with select NVRs
Basic AnalyticsMotion detection, Tampering alarm,
Audio detection, Face detection
Statistical AnalyticsPeople Flow Counting & Crowd Density monitoring
Other FunctionsWatermark, IP address filtering, access policy,
ARP protection, RTSP authentication,
user authentication
AUDIO
Audio CompressionG.711
Audio Bitrate64 Kbps
STORAGE
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
NETWORK
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP,
PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP,
UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
RTMP,SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 3 user levels: administrator,
common user, operator
SecurityPassword protection, Strong password, HTTPS
encryption, Export operation logs, Basic
and digest authentication for RTSP, Digest
authentication for HTTP, TLS 1.2, WSSE and
digest authentication for ONVIF
ClientCymCam2 / Guard Station / Star4Live
Web BrowserPlug-in required live view:
IE 10 and above, Chrome 45 and above,
Firefox 52 and above, Edge 79 and above
Plug-in free live view:
Chrome 57.0 and above, Firefox 58.0 and above,
Edge 16 and above
INTERFACE
Audio I/ON/A
Alarm I/ON/A
Built-in MicSupport

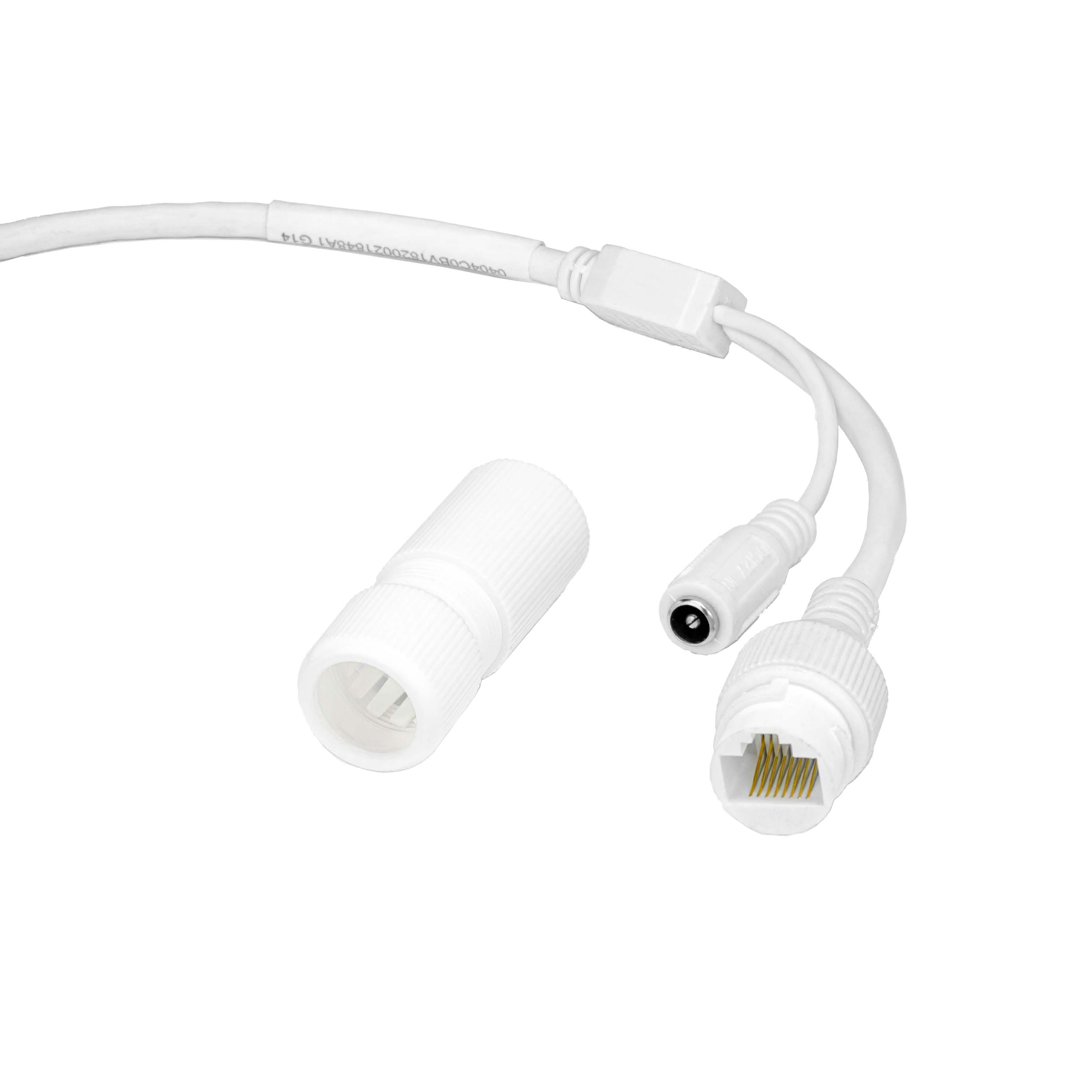

Network1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Power InterfaceØ 5.5mm coaxial power plug
DimensionsØ111 x 95mm (Ø4.4” x 3.7”) (L × W × H)
Weight0.48kg (1.058lb)
MaterialMetal + Plastic
Working/Storage Environment-30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

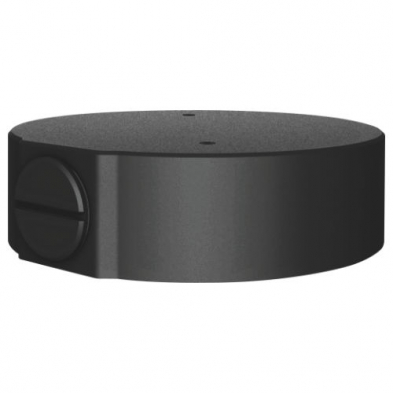

Optional Junction BoxCY-JBMD-WH / BK Junction box
CY-WM03-WH / BK Wall mount bracket
