Platinum Tools EZ-RJ45 Shielded Cat5e Internal Ground Connectors – 50pcs/Bag

Item Code: PL-100020

38 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Overview

Overview

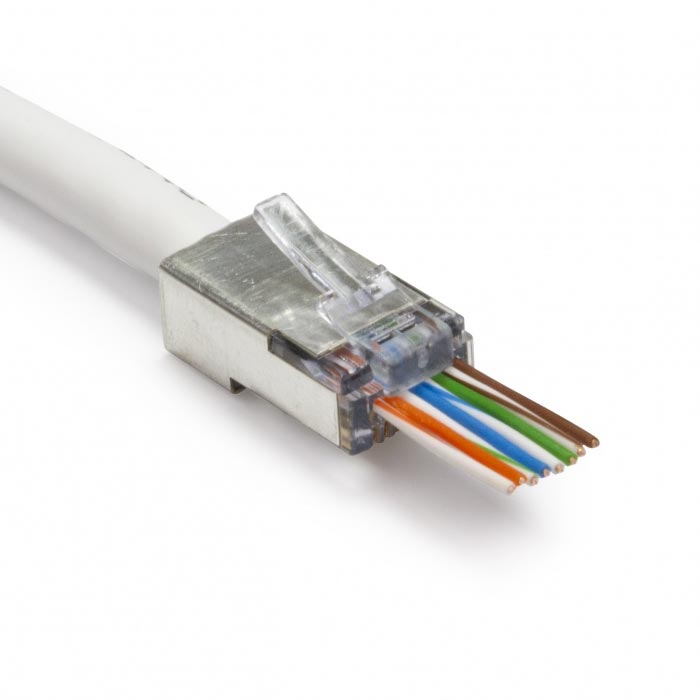

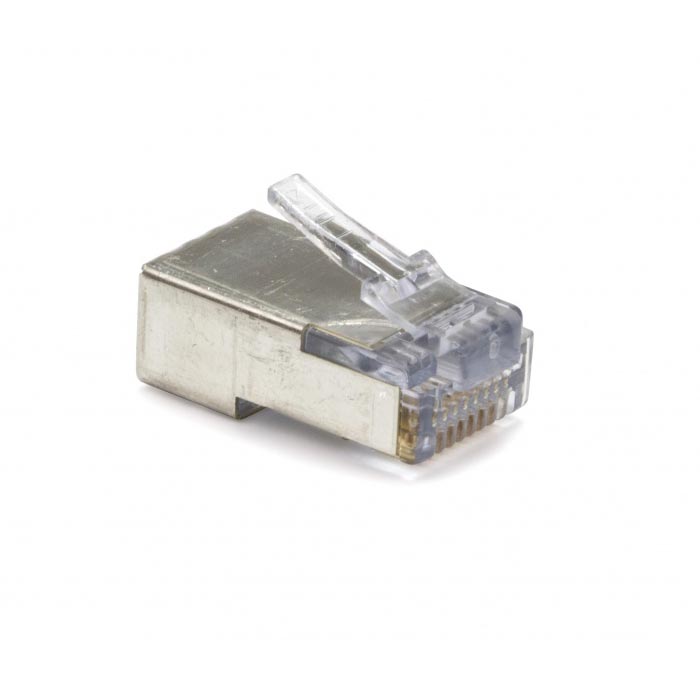

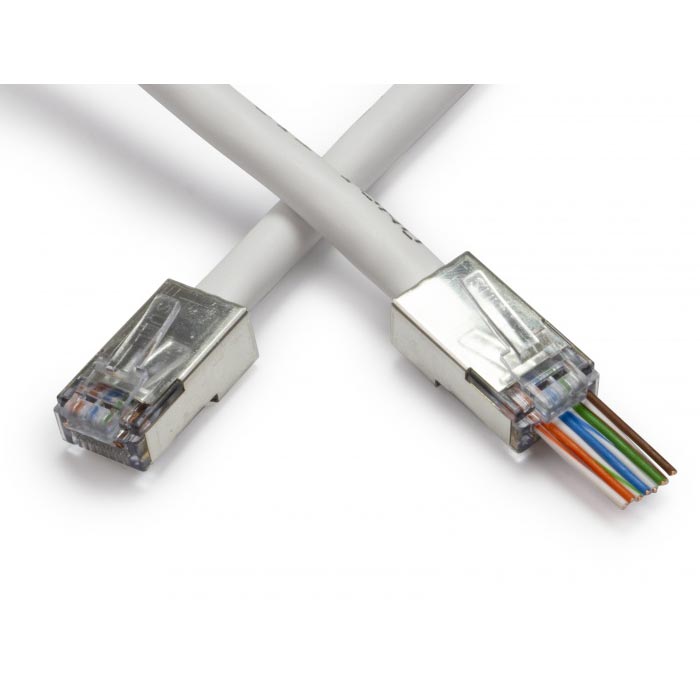

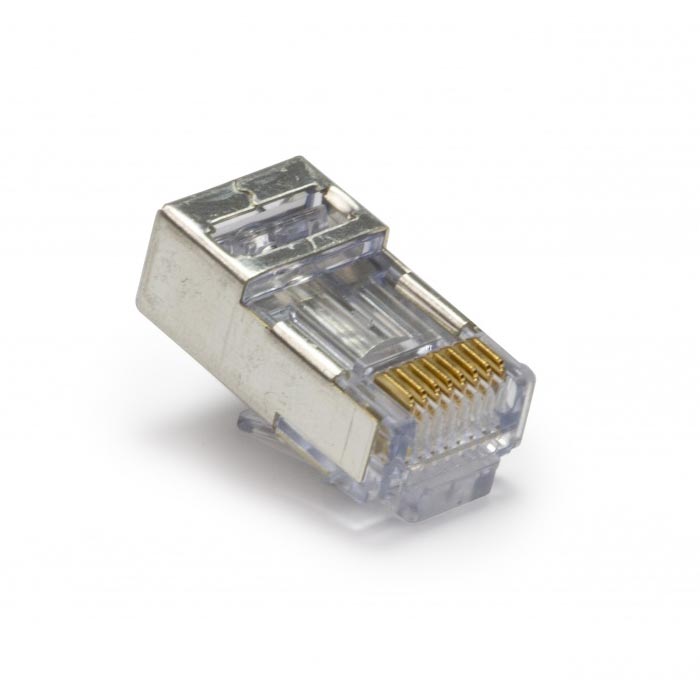

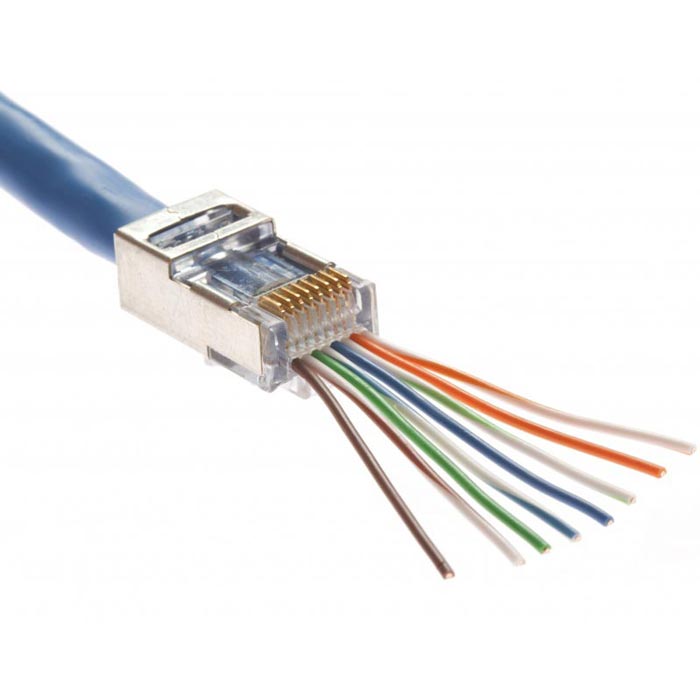

The EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

  • EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
  • Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
  • Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
  • Significantly improve Shannon capacity.
  • Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
  • Category 5e performance per EIA/TIA. FCC compliant, UL rated. RoHS compliant
  • Max Cable OD: 6.60mm (0.260")
  • Max Insulated wire OD: 1.016mm (0.040")
  • For solid round or stranded wire cables.
  • Made in the USA
  • TAA Compliant

Application

Hospitals (EMI / RFI), Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers.

  • Can be prepped for use with CAT5e shielded cable
