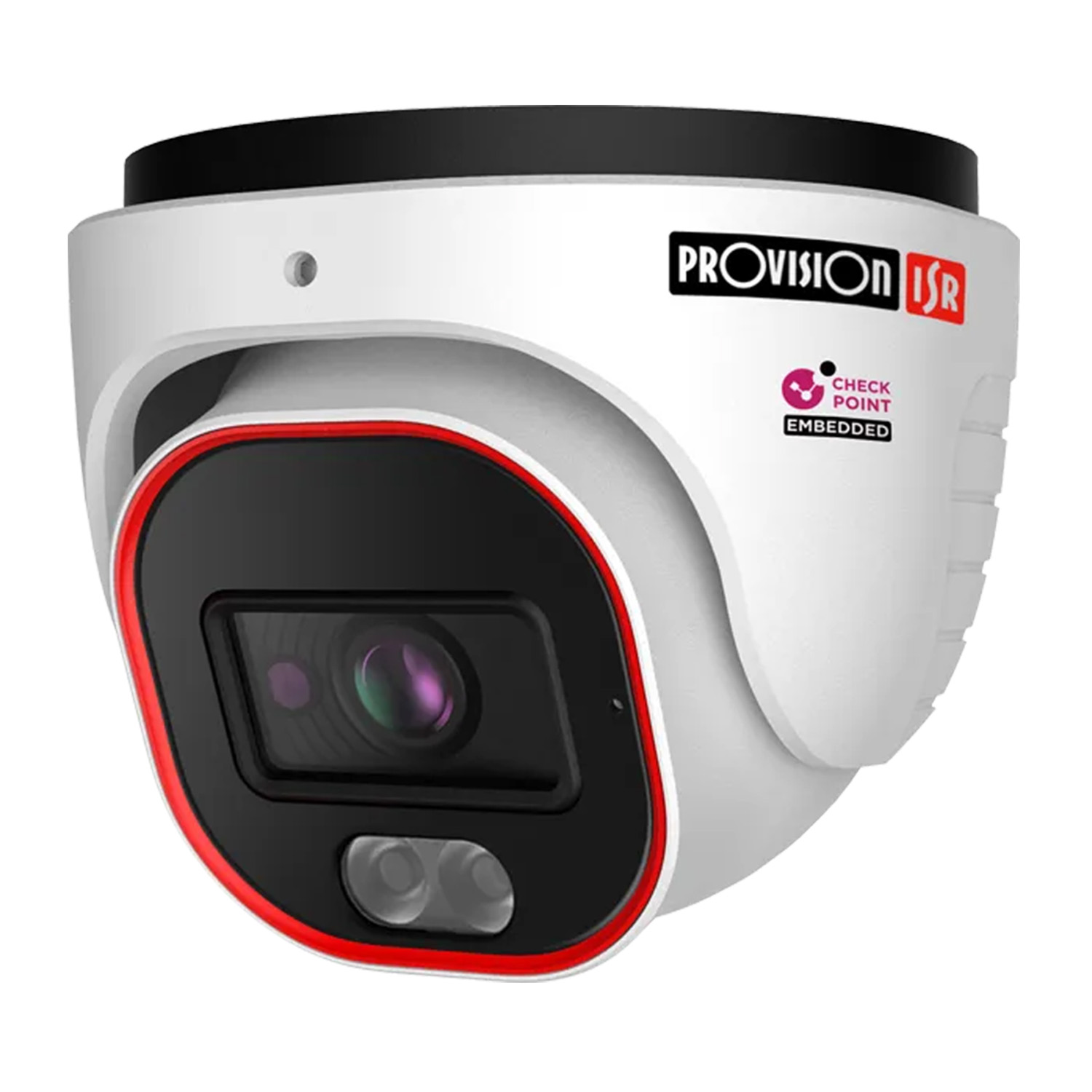

Provision-ISR 2MP Turret S-Sight Hybrid IP Fixed Lens w/ 20M IR and DDA Analytics

Item Code: PV-DH-320IPSN-28

2MP Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics

32 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Overview

Overview

Equipped with a 2.8 fix lens, this 2MP Dome/ Turret camera is designed for short-distance surveillance (up to 20m) in indoor and outdoor scenarios. With its hybrid capability, the white LED will enlighten the scene when humans being detected for full color image even in dark scenarios. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition. With various detection rules and triggers. This model complies with NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime. With its outstanding performance, reliability, and affordable price, the DH-320IPSN-28 camera is the perfect solution for any simple IP installation.

Features

Features

  • DH-320IPSN-28 2MP Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics
  • Sensor: 1/3″ CMOS (16:9)
  • Resolution: 1920×1080 25/30FPS (2MP)
  • Lens: 2.8mm (104°) ICR + 24/7 Full-Color Day Mode
  • Illumination: 20m (1 High-Power IR LED) 20m (1 High-Power White LED)
  • Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
  • Quantum IoT Nano agent by Check Point™
  • General Analytics: Item Monitoring, Camera Tampering
  • AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
  • True WDR (120dB), BLC, HLC, ROI
  • SD Card: Event/Schedule Record (Up to 256GB)
  • Built-in Microphone + Audio input
  • ONVIF: Profile M/T/S/G
  • Water Proof: IP67
  • Weight: ~550g
  • Power: DC12V/~400mA / PoE/~7W

Specifications

Specifications

Specifications for: PV-DH-320IPSN-28: Provision-ISR 2MP Turret S-Sight Hybrid IP Fixed Lens w/ 20M IR and DDA Analytics
3rd Party Cyber Protection
GeneralQuantum IoT Nano agent by Check Point™
Protection MethodsShell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
NDAA Compliant
NDAA CompliantYes
Video
Image Sensor1/3" CMOS (16:9)
Effective Pixels1920x1080
Electronic Shutter1/3s ~ 1/100000s
Day & NightICR + 24/7 Full-Color Day Mode
Min. IlluminationDay: 0.1lux / Night: 0.008lux (@F1.6, AGC on) 0lux with IR on
Audio
Audio compressionG.711A/G.711U
CommunicationOne-Way Audio
Image SettingsAWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image EnhancementTrue WDR (120dB), BLC, HLC, ROI
Noise Reduction3D-DNR
Image OrientationMirror/Flip, Corridor Mode
Privacy ZoneYes
Events and Analytics
AnalyticsGeneral Analytics: Item Monitoring, Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
Motion DetectionYes
Compression
Resolution2MP (1920x1080) / D1 (704x576) / VGA (640x480), QVGA (480x240) / CIF (352x288)
Frame Rate1-25/30FPS
Video CompressionH.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-StreamMaster Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Sub-Stream: VGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate64Kbps ~ 4Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode ModeVBR/CBR
Image QualityFive levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)2.8mm (104°)
IrisFixed Iris
Lens MountM12 Mount
Detect41m(133ft)
Recognize8m(27ft)
Identify4m(13ft)
Network
User AccessSupports simultaneous monitoring of up to 4 users with multi-stream real-time transmission
Network ProtocolIPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote MonitoringIE Browsing, VMS Software, Provision Cam2 Mobile App
Ethernet100Mbps
ONVIFProfile M/T/S/G
Connectivity
NetworkRJ45 (+PoE)
Audio ConnectivityBuilt-in Microphone + Audio input
AlarmNo
SD CardEvent/Schedule based Main/Substream recording (Up to 256GB)
WiegandN/A
PowerDC Socket
Analog Video OutputNo
Housing
PoEYes
Illumination20m (1 High-Power IR LED) 20m (1 High-Power White LED)
Power SupplyDC12V/~400mA / PoE/~7W
Protection RateWater Proof: IP67
Work Environment-30°C~60°C, 10%~90% Humidity
Bracket3-Axis Bracket

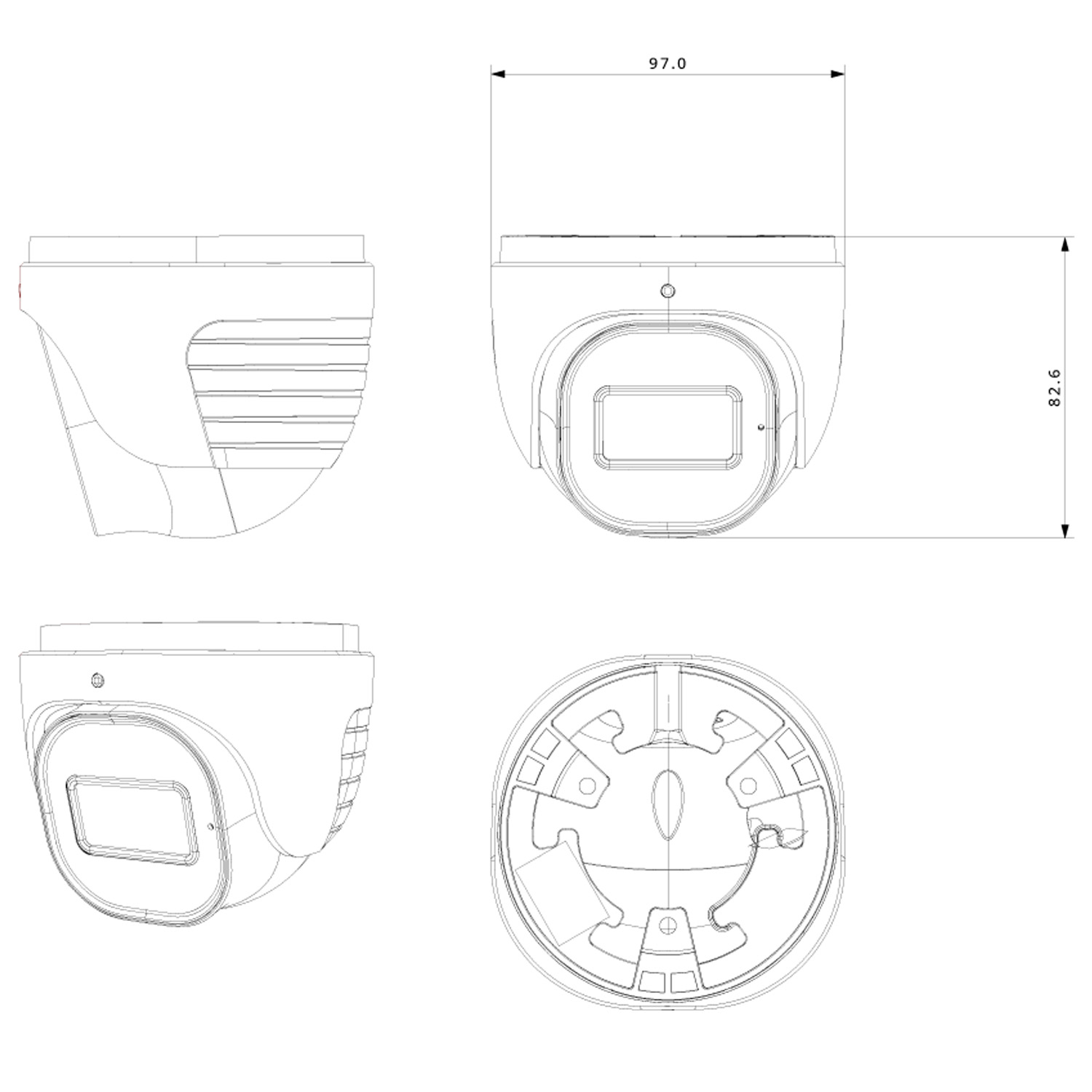

DimensionsØ97mm x 82.6mm
Weight (gross)~550g
Hard Reset ButtonYes
