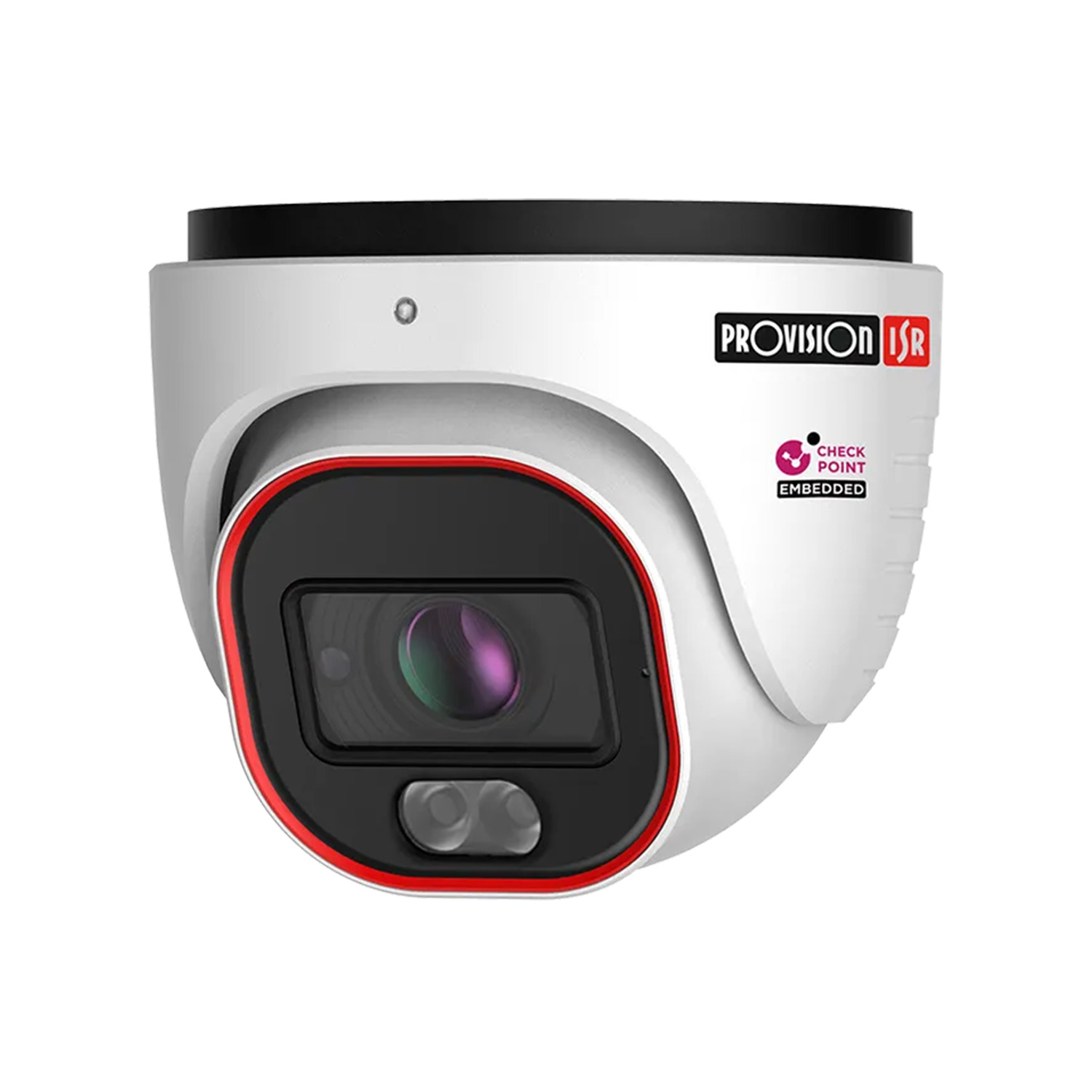

| Specifications for: PV-DH-340ADSN-28: Provision-ISR 4MP Turret S-Sight Hybrid Active Deterrence IP Fixed 2.8mm Lens w/ 30M IR and DDA Analytics Camera – White |
|---|
| 3rd Party Cyber Protection |
|---|
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant |
|---|
| NDAA Compliant | Yes |
| Video |
|---|
| Image Sensor | 1/3" CMOS (16:9) |
| Effective Pixels | 2560x1440 |
| Electronic Shutter | 1s ~ 1/100000s |
| Day & Night | ICR + 24/7 Full-Color Day Mode |
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on |
| Audio |
|---|
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image |
|---|
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics |
|---|
| Analytics | General Analytics: Camera Tampering, Item Monitoring AI (Object Recognition): DDA Sterile Area, DDA Line Crossing |
| Motion Detection | Yes |
| Compression |
|---|
| Resolution | 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1920x1080) / 1MP (1280x720) / D1 / VGA / QVGA /CIF |
| Frame Rate | 1-25/30FPS |
| Video Compression | H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream | Master Stream: 4MP (2560x1440) / 3MP (2304x1296) / 2MP / 1MP (1~30fps) Substream: 1MP/D1/VGA/CIF (1~30fps) Third Stream: D1/QVGA/CIF (1~30fps) |
| Bit Rate | 64Kbps ~ 6Mbps |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens |
|---|
| Lens (Field of View) | 2.8mm (94°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Detect | 62m(203ft) |
| Recognize | 12m(40ft) |
| Identify | 6m(20ft) |
| Network |
|---|
| User Access | Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet | 100Mbps |
| ONVIF | Profile M/T/S/G |
| Connectivity |
|---|
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone and Speaker + Audio Input / Output |
| Alarm | No |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | N/A |
| Power | DC Socket |
| Analog Video Output | No |
| Housing |
|---|
| PoE | Yes |
| Illumination | 30m (1 High-Power IR LED) 30m (1 High-Power White LEDs) Red/Blue Strobe Lights |
| Power Supply | DC12V/~700mA / PoE/~10.5W |
| Protection Rate | Water Proof: IP66 |
| Work Environment | -30°C~60°C, 10%~95% Humidity |
| Bracket | 3-Axis Bracket |

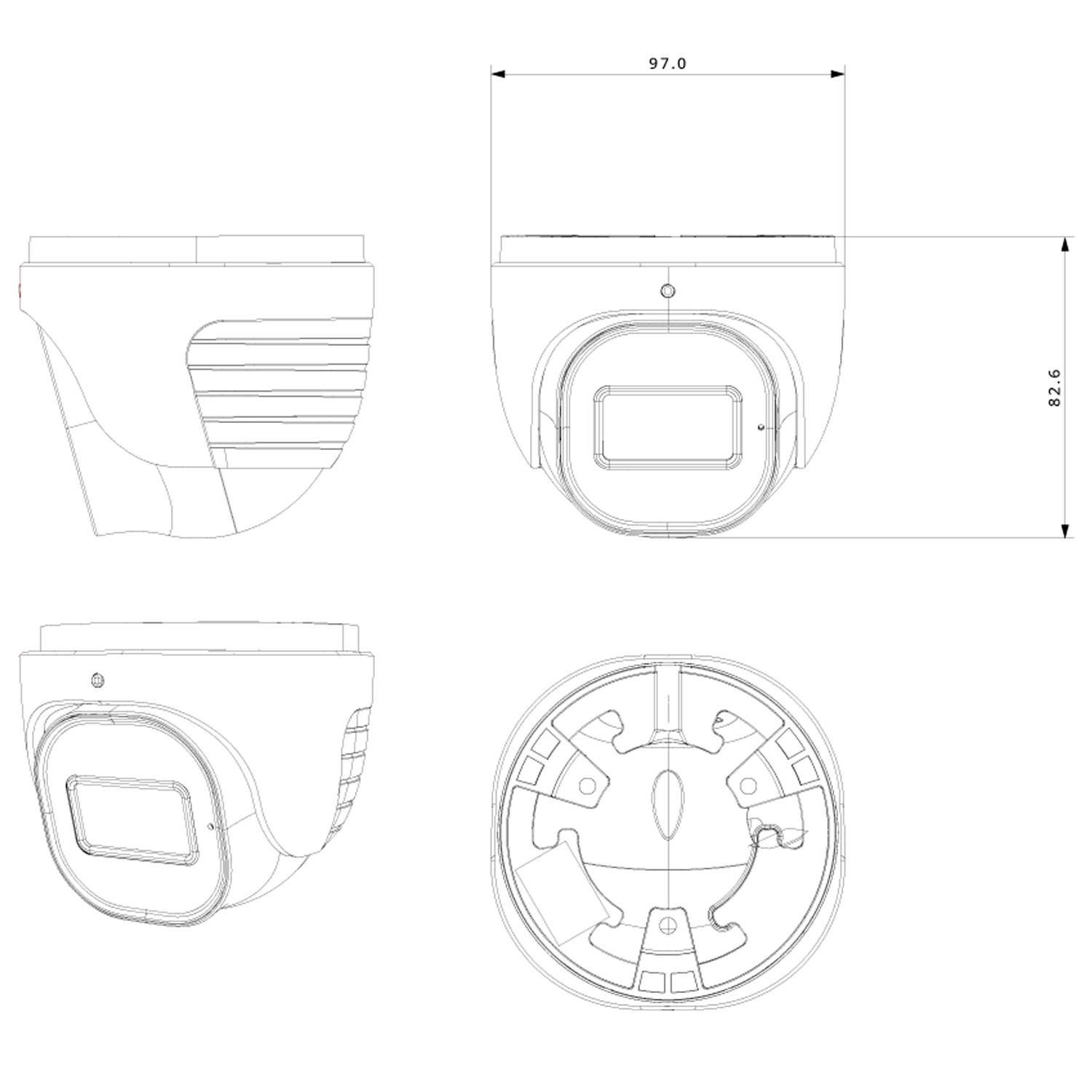

| Dimensions | ø 111.5 x 99.6mm |
| Weight (gross) | ~720g |
| Hard Reset Button | Yes |
