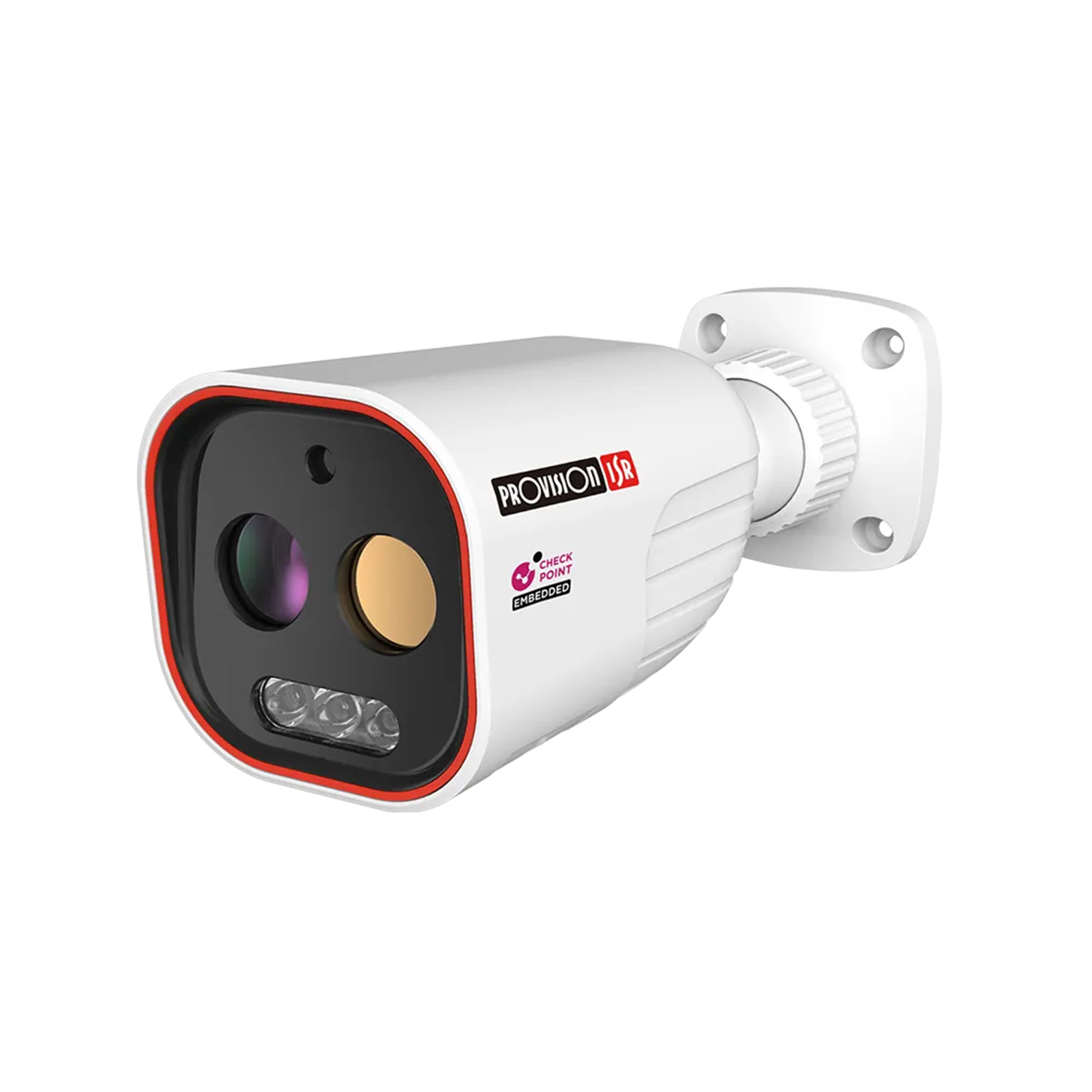

| Specifications for: PV-BMH-THERMAL-3-V2: Provision-ISR Thermal Fixed Lens Medium Bullet with Hybrid LED and DDA Analytics |
|---|
| 3rd Party Cyber Protection |
|---|
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant |
|---|
| NDAA Compliant | Yes |
| Video |
|---|
| Image Sensor | 1/1.7" CMOS (4:3) |
| Effective Pixels | 4000x3000 |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Day & Night | ICR |
| Min. Illumination | 0.006lux (@F1.4, AGC on) 0lux with IR on |
| Audio |
|---|
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image |
|---|
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | Digital WDR, BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics |
|---|
| Analytics | General Analytics: Camera Tampering Human & Vehicle Recogition: SMD, Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification |
| Motion Detection | Yes |
| Metadata | Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type |
| Compression |
|---|
| Resolution | 12MP (4000x3000) / 8MP (3840x2160) / 6MP (3200x1800) / 4MP (2688x1520) / 2MP (1920x1080) / 1MP (1280x720) / D1 (704x576) / VGA (640x480) / 480x240 /CIF (352x288) |
| Frame Rate | 1-25/30FPS |
| Video Compression | H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream | Master Stream: 12MP (4000x3000) / 8MP (3840x2160) / QHD (3200x1800) / 2688x1520 / 2MP (1920x1080) Substream: 2MP/1MP/D1 Third Stream: 1MP/D1/VGA/360p/240p/CIF (1~30fps) Fourth Stream: D1/VGA/360p/240p/CIF (1~30fps) Fifth Stream: D1/VGA/360p/240p/CIF (1~30fps) |
| Bit Rate | 64Kbps ~ 8Mbps@H.265 / 128Kbps ~ 16Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens |
|---|
| Lens (Field of View) | 2.8-12mm MVF with Auto Focus (98°-47°) |
| Iris | DC Iris |
| Lens Mount | Ø14 Mount |
| Detect | 2.8~12mm(W): 86m(187ft) - 2.8~12mm(T): 190m(374ft) |
| Recognize | 2.8~12mm(W): 17m(63ft) - 2.8~12mm(T): 38m(100ft) |
| Identify | 2.8~12mm(W): 9m(48ft) - 2.8~12mm(T): 19m(66ft) |
| Network |
|---|
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP Multicast, UPnP, Email, FTP, FTPS, HTTPS, QoS, HTTP POST, Auto Report, P2P |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet | 100Mbps |
| ONVIF | Profile M/T/S/G |
| Connectivity |
|---|
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone + Audio input + Audio output |
| Alarm | Alarm in + Alarm out |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | N/A |
| Power | DC Socket |
| Analog Video Output | CVBS out + Technician Port |
| Housing |
|---|
| PoE | Yes |
| Illumination | 40m (2 High-Power IR LEDs) |
| Power Supply | DC12V/~800mA / PoE/~11.5W |
| Protection Rate | Water Proof: IP67 Vandal Proof: IK10 |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Bracket | 3-Axis Bracket |
| Dimensions | Ø140.9x100.3mm |
| Weight (gross) | ~960g |
| Hard Reset Button | Yes |
