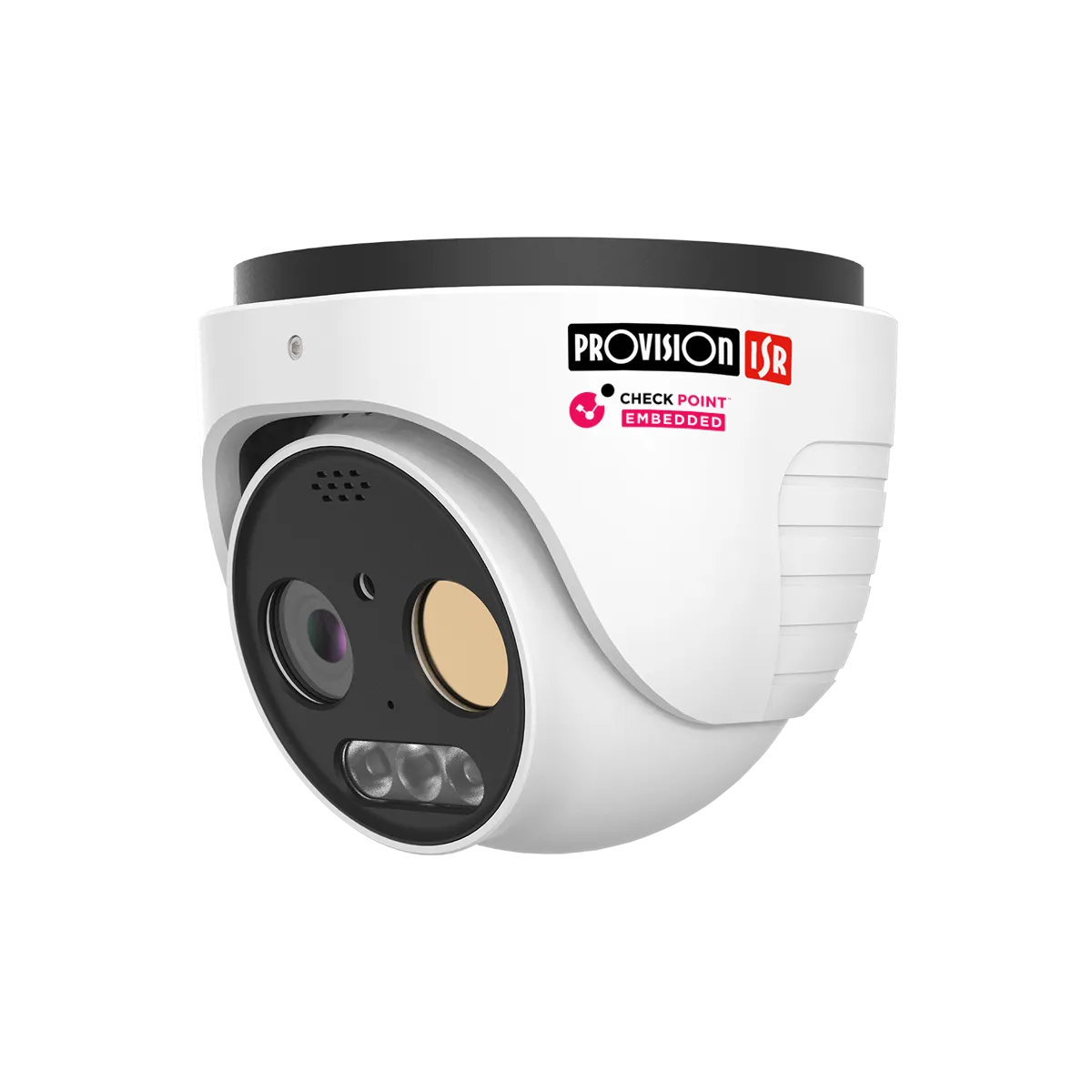

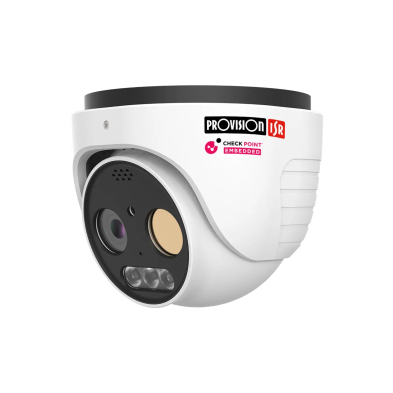

| Specifications for: PV-DH-THERMAL-3-V2: Provision-ISR 5MP Thermal Fixed Lens Large Dome Camera with Hybrid LED and DDA Analytics |
|---|
| Video (Optical) |
|---|
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 2592x1944 |
| Electronic Shutter | 1/23s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.02lux (@F1.6, AGC on) 0lux with IR on |
| Video (Thermal) |
|---|
| Detector Type | 12µm Vanadium oxide uncooled focal plane detector |
| Thermal Resolution | 256×192 |
| Temperature Range | -20° ~ 150° C |
| Measurement Accuracy | ±8°C (Varies with target emissivity, ambient conditions, and distance) |
| Spectral Range | 8µm-14µm |
| Thermal Sensitivity (NETD) | ≤50mK(@25°C, F#=1.0) |
| Color Sets | Black hot, White hot, Rainbow, iron oxide red, Lava Fusion image support |
| Temperature Detection Distance | 3.5m (Object size is 0.1m * 0.1m) In Theory: when the size of the object is doubled - the detection distance is also doubled |
| Fire Detection Distance | 11m (Flame size is 0.1m * 0.1m) In Theory: when the size of the flame is doubled - the detection distance is also doubled |
| DRI Distance Human | Detection: 133m(436ft) Recognition: 33m(108ft) Identification:17m(56ft) |
| DRI Distance Vehicle | Detection: 409m (1342ft) Recognition: 102m(335ft) Identification:51m(167ft) |
| NDAA Compliant |
|---|
| NDAA Compliant | Yes |
| Lens |
|---|
| Lens (Field of View) | Optical: 4mm (74°) Thermal: 3.2mm (53°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Image |
|---|
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable, Lens distortion correction |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Housing |
|---|
| Bracket | 3-Axis Bracket |
| Illumination | 20m (2 High-Power IR LED) White Strobe light |
| PoE | Yes |
| Power Supply | DC12V/~650mA / PoE/~10W |
| Protection Rate | Water Proof: IP66 |
| Work Environment | -30°C~60°C, 10%~90% Humidity |

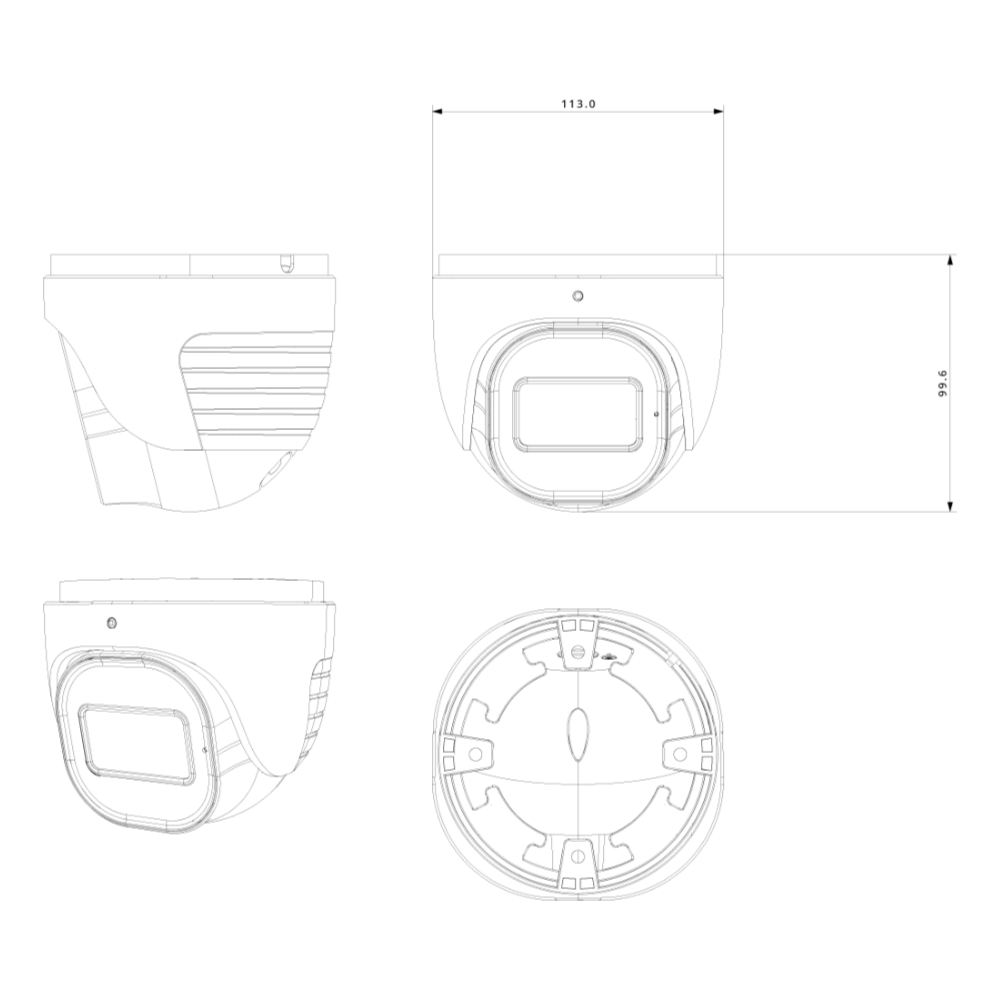

| Dimensions | Ø111.5mm×99.6mm |
| Weight (gross) | ~730g |
| Hard Reset Button | Yes |
| Network |
|---|
| Remote Monitoring | IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, HTTP POST, P2P |
| ONVIF | Profile M/T/S/G |
| Ethernet | 100Mbps |
| Events and Analytics |
|---|
| Analytics | General Analytics: Camera Tampering AI (Optical Image): AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI (Thermal): DDA Sterile Area, DDA Line Crossing Audio Exception |
| Motion Detection | Yes |
| Connectivity |
|---|
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in MIC + Speaker + Audio input |
| Alarm | Alarm in + Alarm out |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256Gb) |
| Power | PoE / DC Socket |
| Analog Video Output | No |
| Compression |
|---|
| Video Compression | H.265/H.264/MJPEG |
| Multi-Stream | Master Stream: 5MP(2592x1944) / 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps) Thermal Stream: 1MP / D1 / CIF / QCIF |
| Bit Rate | 64Kbps ~ 11Mbps@H.265 / 64Kbps ~ 11Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Audio |
|---|
| Audio compression | G.711A/G.711U |
| Communication | 2-Way Audio |
| 3rd Party Cyber Protection |
|---|
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
