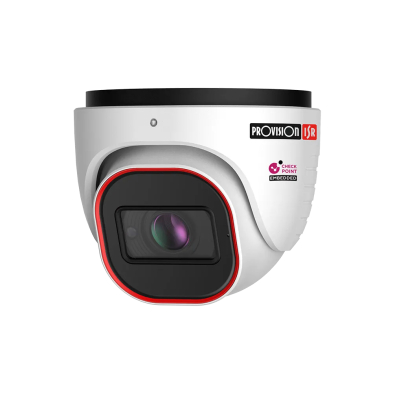

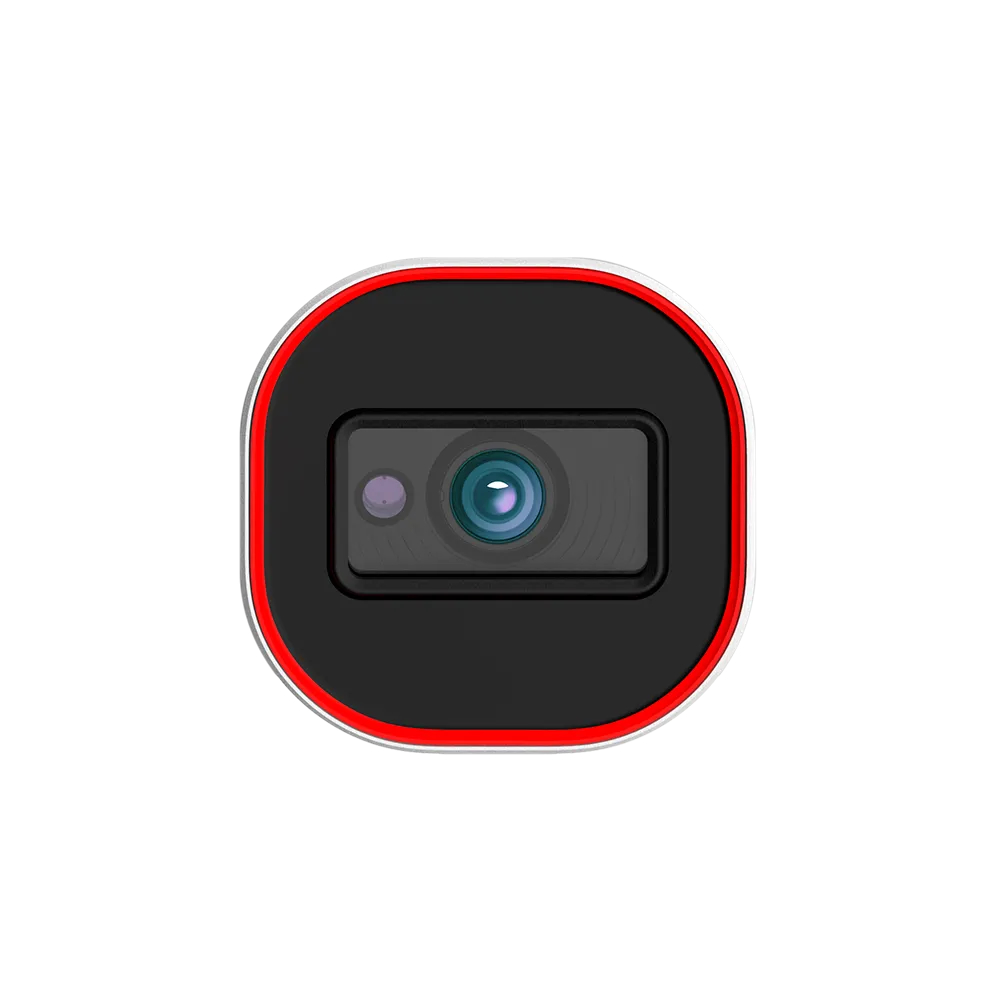

| Specifications for: PV-DI-380IPEN-MVF-V5: Provision-ISR 8MP Motorized Lens Dome Camera with IR LED and DDA2 Analytics - White |
|---|
| 3rd Party Cyber Protection |
|---|
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant |
|---|
| NDAA Compliant | Yes |
| Video |
|---|
| Image Sensor | 1/2.8" CMOS (16:9) |
| Effective Pixels | 3840x2160 |
| Electronic Shutter | 1/3s ~ 1/10000s |
| Day & Night | ICR |
| Min. Illumination | 0.015 lux (@F1.4, AGC on) 0 lux with IR on |
| Audio |
|---|
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image |
|---|
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR*** (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics |
|---|
| Analytics | General Analytics: Camera Tampering Human & Vehicle Recogition: SMD, Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification Audio Exception |
| Motion Detection | Yes |
| Metadata | Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type |
| Compression |
|---|
| Resolution | 8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF |
| Frame Rate | 1-25/30FPS |
| Video Compression | H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream | Master Stream: 4K(3840x2160)/ 6MP(3072x2048) / 5MP(2592x1944) / 2K(2560x1440) / 2MP(1920x1080) (1~20fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps) |
| Bit Rate | 64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens |
|---|
| Lens (Field of View) | 2.8-12mm MVF with Auto Focus (97°- 32°) |
| Iris | DC Iris |
| Lens Mount | Ø14 Mount |
| Detect | 2.8~12mm(W) 80m(262ft) 2.8~12mm(T) 273m(896ft) |
| Recognize | 2.8~12mm(W) 16m(52ft) 2.8~12mm(T) 55m(180ft) |
| Identify | 2.8~12mm(W) 8m(26ft) 2.8~12mm(T) 27m(89ft) |
| Network |
|---|
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet | 100Mbps |
| ONVIF | Profile T/S/G |
| Connectivity |
|---|
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone + Audio input |
| Alarm | No |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | N/A |
| Power | DC Socket |
| Analog Video Output | No |
| Housing |
|---|
| PoE | Yes |
| Illumination | 40m (4 High-Power IR LED) |
| Power Supply | DC12V/~750mA / PoE/~10W |
| Protection Rate | Water Proof: IP67 |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Bracket | 3-Axis Bracket |
| Dimensions | Ø113mm×99.6mm |
| Weight (gross) | ~750g |
| Hard Reset Button | Yes |
