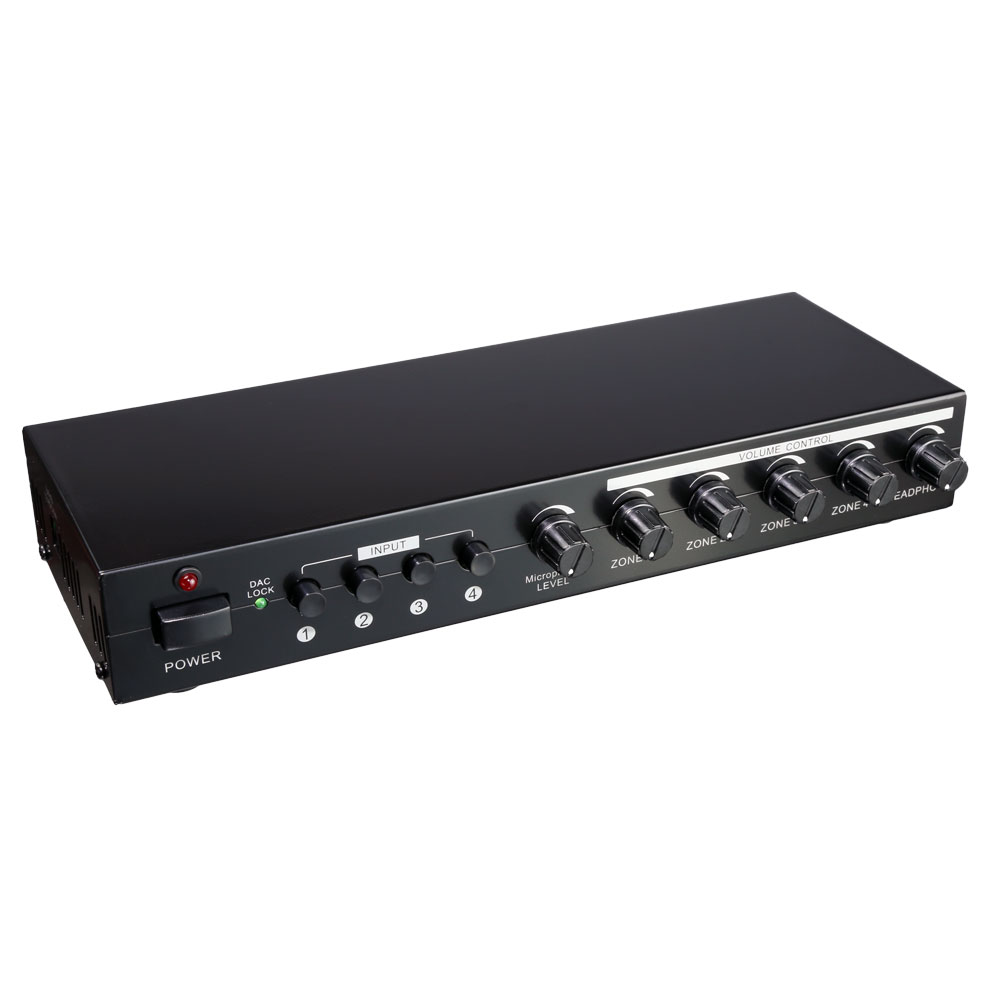

SyncSound Audio Amplifier – 4 Source, 4 Zone, Stereo

Item Code: SS-AUDIOAMP4-4

The 4 Zone Stereo Audio Power Amplifier is designed with 1 input that is completely assignable to any of the 5 zones. (One zone is for the Headphone Output). Also features loop-out, and independent volume control for each zone. Includes power supply.

8 (EA) in Stock

Status: In Stock

EA
Comments or instructions

Features

Features

  • Four-in and five-out. (4 Speaker output, 1 Headphone
  • output)
  • Built-In audio digital to analog converter (DAC)
  • Audio DAC Lock indicator
  • Provides two interfaces of digital audio input (Coaxial & Optical)
  • Provides two interfaces of stereo audio input (RCA & 3.5 mm phone jack)
  • Supports dynamic microphone input
  • Independent microphone level control
  • Individual speaker volume control
  • Provides headphone output
  • Provides line loop-out expanding
  • Large detachable terminal block (supplied) for quick and easy installation
  • Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Specifications

Specifications for: SS-AUDIOAMP4-4: SyncSound Audio Amplifier – 4 Source, 4 Zone, Stereo
Speaker Audio Power Amplifier(X4)
Amplifier TypeStereo Class-D
Output power15W (rms) per channel (@ RL=4 ohm)
THD+N0.06%(@ RL = 8 ohm, f = 1 kHz)
Minimum Load Resistance4 ohm
Speaker Protection circuitIncluded
Earphone Audio Power Amplifier
Output power105mW (rms) per channel
THD+N0.05 % (@ RL = 16 ohm, f = 1 kHz)
Minimum Load Resistance16 ohm
Power & Dimensions
Power Consumed9A Max
Power SourceDC 12 Volts
Size (L x W x H)285 mm x 128 mm x 43 mm
Net Weight (Unit only)0.8 kg

Resources

Resources

PDF Icon Download SS-AUDIOAMP4-4 Spec Sheet



Globe Icon Visit SyncProducts.com
