KEF 6.5" TwoWay Uni-Q Round Dual Stereo Speaker – C Series Ultra Thin Bezel Design – Each
Details
Details

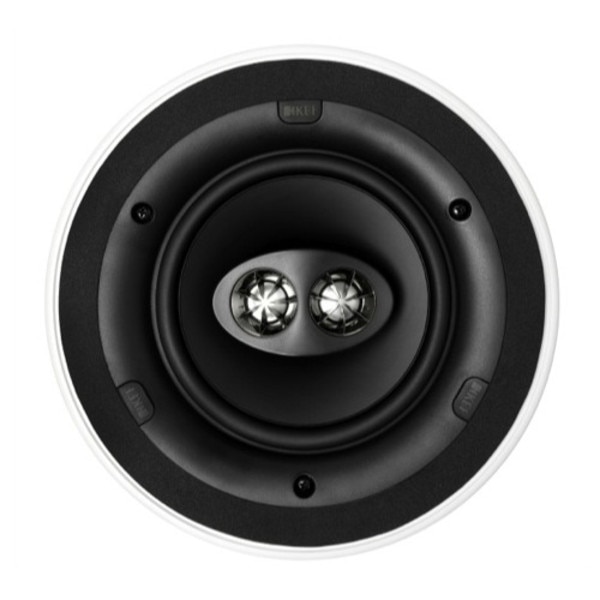

Ci160CRds Thin-bezel in-ceiling Architectural Speaker – Round
The Ci160CRds thin-bezel in-ceiling speaker is a high-fidelity flush-mount dual stereo speaker that is ideal for locations with room for only one speaker.

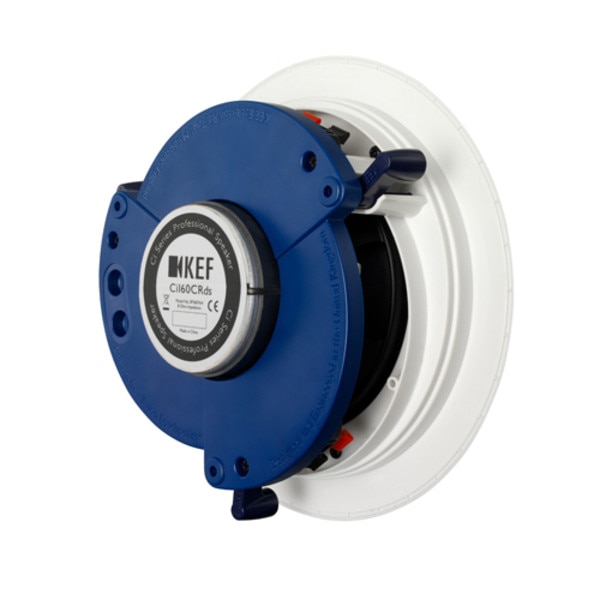

The KEF Ci Series Dual Stereo models are high-fidelity flush-mount speakers that recreates stereo, and are ideal for locations where there is only room for one speaker. Thanks to KEF's simple and ingenious screw down clamping system – with moisture-resistant fixings – you can place these speakers in environments such as bathrooms or under eaves.
Key Features
KEF “sit-anywhere” Uni-Q® Technology – This proprietary driver array places the tweeter in the acoustic centre of the woofer delivering wide dispersion with consistent sound characteristics throughout the space. Because the high and low frequencies originate from the same point, acoustic lobing problems common to other speaker designs are virtually eliminated allowing fewer speakers to deliver smooth coverage across a wide listening area.
Tangerine Waveguide – In addition to protecting the driver, the Tangerine Waveguide further enhances dispersion allowing for 120 degrees of coverage.
Weather Resistant – Manufactured using a proprietary plating and powder coating process, the KEF Ci160CRDS is UV protected and designed to withstand the harshest operating environments.
Ultra-Thin Bezel (UTB) – To maintain a premium aesthetic appearance, the ABS bezel was carefully engineered to be as thin as possible while maintaining the necessary structural rigidity.
Magnetic Grille – For security and ease of installation the grille attaches by a powerful magnetic circuit and can be painted to match any décor.
IP64 Certification – The speaker passed official IEC testing to ensure that splashing water would have no harmful effects on assembly components.
| Specifications for: KF-CI160CRDS: KEF 6.5" TwoWay Uni-Q Round Dual Stereo Speaker – C Series Ultra Thin Bezel Design – Each | |
|---|---|
| Model | Ci160CRds |
| Series | C Series |
| Nominal impedance | 8 Ω |
| Sensitivity (2.83V/1m) | 91dB |
| Frequency response (±6dB) open-backed | 50Hz - 20kHz |
| Frequency range (-10dB) | 45Hz - 30kHz |
| Nominal coverage | 120° |
| Max SPL | 106dB |
| Crossover frequency | 3.2kHz |
| Drive units | LF: 160 mm (6.5 in.) Dual voice coil MF: - 2 x 19 mm (0.75 in.) |
| Recommended amplifier power | 10 - 80 W |
| Recommended high-pass filter | 50Hz |
| Product external dimensions (H x W x D) | Not Applicable |
| Product external dimensions (Diameter ⌀ x Depth) | 234.6 mm (9.24 in.) x 93 mm (3.66 in.) |
| Cut-out dimensions (H x W) | Not Applicable |
| Cut-out dimensions (Diameter ⌀) | 196 mm (7.71 in.) |
| Net Weight | 1.80 kg (4.0 lbs.) |
| Mounting depth from surface | 86 mm (3.36 in.) |
| Optional rough in frame | RIF160R |
| Optional rear enclosure | RNC160R |
| Ideal rear volume | 35L |
| Minimum rear volume | 20L |
| Certification | IP64 |
