KEF 6.5" TwoWay Uni-Q Round Speakers – M Series Ultra Thin Bezel Design – Pair
Details
Details

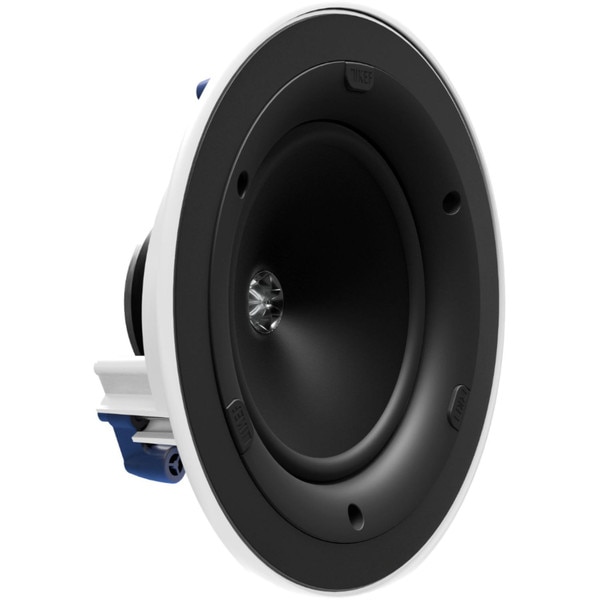

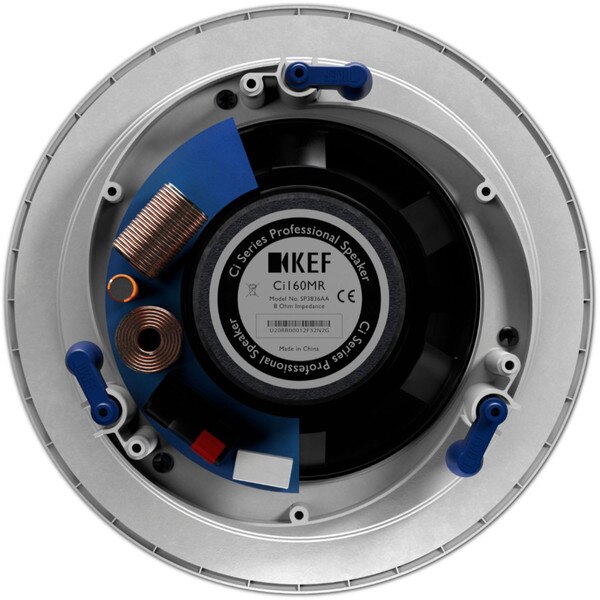

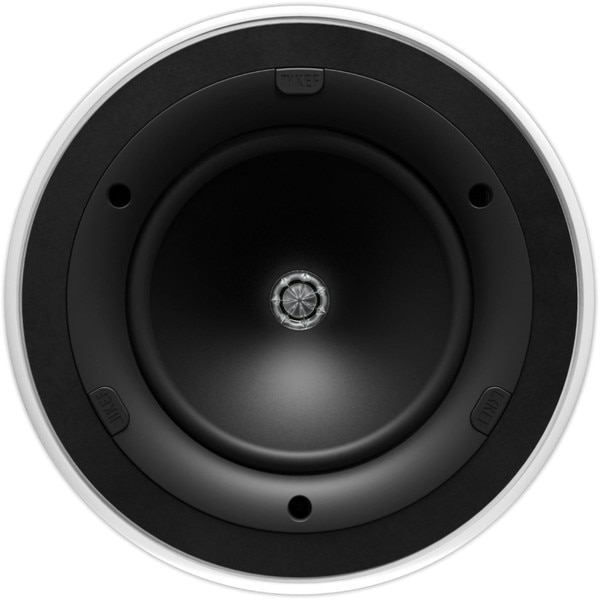

Ci160MR Thin-bezel in-ceiling and flush mounted weather resistant Architectural Speaker pair – Round
The KEF Ci160MR is a high performance speakers designed for in-ceiling and flush mount installations. It uses a coincident point source design featuring KEF's proprietary "sit- anywhere" Uni-Q® technology with a driver array that includes a 16mm high frequency aluminium tweeter mounted in the acoustic centre of the 160mm low frequency woofer. The tweeter features KEF's Tangerine Waveguide engineered to enhance high frequency dispersion and when combined with the Uni-Q array, creates a speaker that delivers exceptionally smooth and consistent sound across a wide listening area. It meets IP64 certification requirements and is specifically engineered to deliver exceptional acoustic performance in a value oriented package.
The ABS assembly, Ultra-Thin Bezel and grille, are UV protected. The KEF Ci160MR is the ideal choice for whole house music, foreground, background, Home Theater and Dolby Atmos applications.
Key Features
KEF "Sit-anywhere" Uni-Q® Technology – This proprietary driver array places the tweeter in the acoustic centre of the woofer delivering wide dispersion with consistent sound characteristics throughout the space. Because the high and low frequencies originate from the same point, acoustic lobing problems common to other speaker designs are virtually eliminated allowing fewer speakers to deliver smooth coverage across a wide listening area.
Weather Resistant – Manufactured using a proprietary grille plating and powder coating process, the KEF Ci160MR is UV protected and designed to withstand the harshest operating environments.
Magnetic Grille – For security and ease of installation the grille attaches by a powerful magnetic circuit and can be painted to match any décor.
Universal Cut-Out – All KEF 160mm round in-ceiling speakers utilise the same diameter openings for ease of installation and flexible component selection.
IP64 Certification – The speaker passed official IEC testing to ensure that splashing water would have no harmful effects on assembly components.
| Specifications for: KF-CI160MR: KEF 6.5" TwoWay Uni-Q Round Speakers – M Series Ultra Thin Bezel Design – Pair | |
|---|---|
| Model | Ci160MR |
| Series | M Series |
| Nominal impedance | 8 Ω |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (±6dB) open-backed | 52Hz - 20kHz |
| Frequency range (-10dB) | 46Hz - 45kHz |
| Nominal coverage | 110° |
| Max SPL | 104dB |
| Crossover frequency | 2.8kHz |
| Drive units | LF: 160mm (6.5in.) Uni-Q HF: - 16mm (0.6in.) |
| Recommended amplifier power | 10 - 100 W |
| Recommended high-pass filter | 50Hz |
| Product external dimensions (H x W x D) | Not Applicable |
| Product external dimensions (Diameter ⌀ x Depth) | 234.6mm (9.24in.) x 88.7mm (3.49in.) |
| Cut-out dimensions (H x W) | Not Applicable |
| Cut-out dimensions (Diameter ⌀) | 196mm (7.71in.) |
| Net Weight | 1.4kg (3.1lbs) |
| Mounting depth from surface | 85.2mm (3.35in.) |
| Optional rough in frame | RIF160R |
| Optional rear enclosure | RNC160R |
| Ideal rear volume | 35L |
| Minimum rear volume | 20L |
| Certification | IP64 |
