Provo Fiber 6F 50 MM OM3 T/B OFNP I/O Dist. FT-6 – Black
Details
Details
Summary
Equivalent to GC-BE0061ANU-BK and PY-C1182-00-G3-006
33-Series Distribution Tight Buffer I/O Plenum Fiber Optic Cable
This versatile indoor-outdoor flame-rated cable design cables provides an effective solution for interbuilding and building transition applications utilizing field installable connectors.
Features
Applications
Outdoors in duct, indoors in the plenum space, tray installations
Applicable Documents
- TIA/EIA FOTP Standards 455
- Colour Coding of Fiber Optic Cables TIA/EIA-598
- NFPA262
- Compliant with ANSI/TIA-568-C.3 standard
- ICEA S-87-640 Standard
- RoHS compliant directive 2002/95/EC

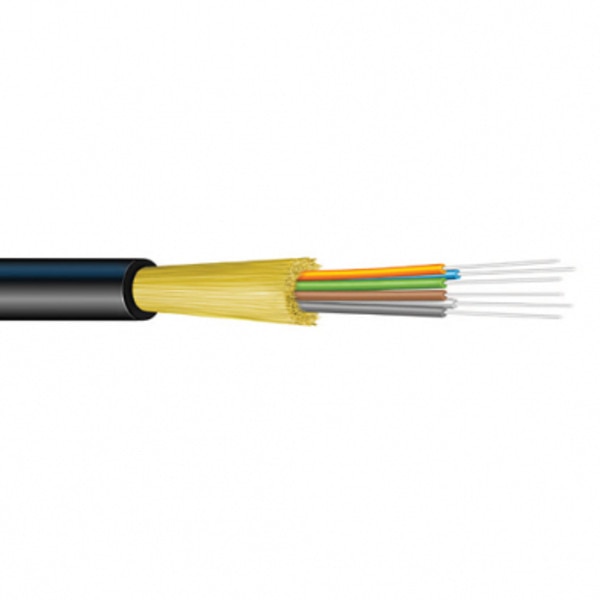

Cable Construction Details
- Tight Buffered Fiber Dimension: 900μm, Nominal
- Tight Buffer Colour Code: As per TIA/EIA-598 standard
- Cable Strength: Water swellable aramid yarns are pulled in with tight buffered fibers under the outer jacket
- Overall Sheath: UV resistant remguard plenum rated polymer
Specifications
| Specifications for: PF-006MMTB-IO-P: Provo Fiber 6F 50 MM OM3 T/B OFNP I/O Dist. FT-6 – Black | ||
|---|---|---|
| Multi-Mode 50μm OM3 10GIG | ||
| Number of Fibers | 6 | |
| Cable OD in. (mm) | 0.200 (4.6) | |
| Weight lb/1000ft (kg/km) | 18 (27) | |
| Maximum Attenuation dB/km | 850 nm | 3.0 |
| 1300 nm | 1.0 | |
| 1310 nm | N/A | |
| 1550 nm | N/A | |
| Overfill Launch Min Bandwidth (MHz-km) | 850 nm | 1500 |
| 1300 nm | 500 | |
| EMBc (MHz-km) | 2000 | |
| Gigabit Ethernet Minimum Link Distance (Meters) | 850 nm | 1000 |
| 1300 nm | 550 | |
| 10 Gigabit Ethernet Minimum Link Distance (Meters) | 850 nm | 300 |
| 1300 nm | – | |
| Maximum Tensile Load | Installation | 1610N/362lbf |
| Long Term | 535N/120lbf | |
| Minimum Bending Radius | Loaded | 20 x Diameter |
| Unloaded | 10 x Diameter | |
| Crush Resistance | 100 N/cm | |
| Impact Resistance (min.) | 25 Impacts | |
| Flexing ± 90° (min.) | 25 Cycles | |
| Temperature Rating | Operation | -20°C to +85°C |
| Installation | 0°C to +75°C | |
| Storage | -40°C to +85°C | |
| Colour | Black | |
Resources
Download PF-006MMTB-IO-P Spec Sheet
