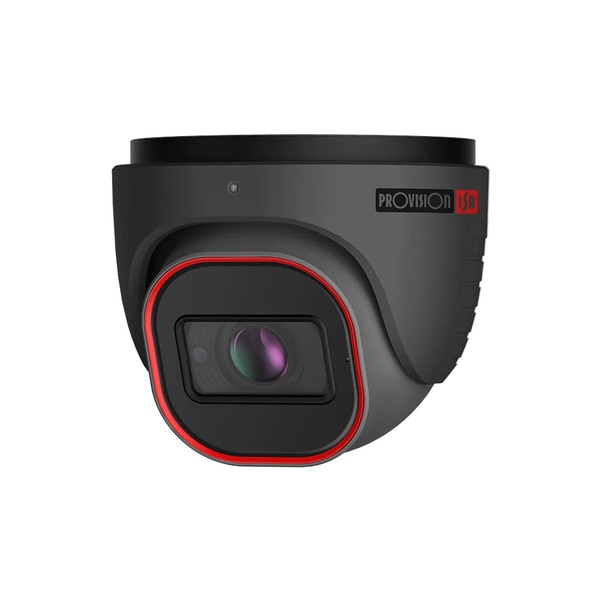

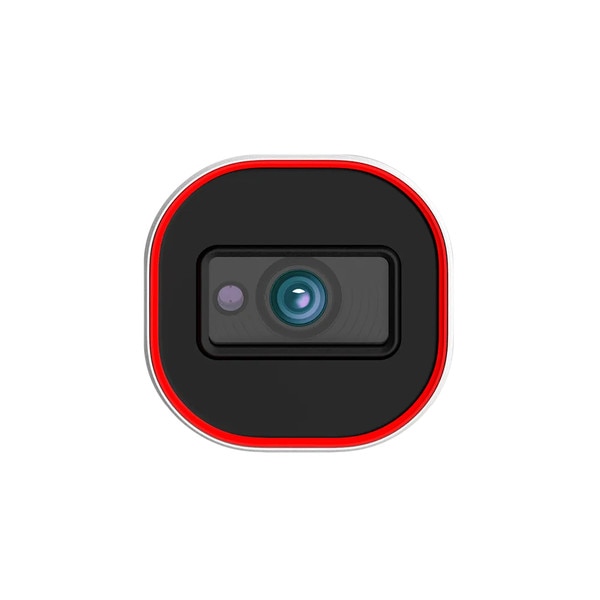

Provision-ISR 3K Motorized Lens Large Dome/Turret Camera w/ 40m IR – Grey
Details
Details
Summary
40m IR 3K Motorized Lens Large Dome/Turret Camera
Features
- Sensor: 1/2.5″ 3K CMOS Sensor
- Selectable Output: 3K: 2592×1944 AHD/TVI 4MP: 2560×1440 AHD/TVI/CVI CVBS: 700TVL
- Lens: 2.8-12mm Mega-Pixel Motorized Vari-Focal (104°-38°)
- True Day&Night-ICR
- Digital WDR
- 3D-DNR/Digital WDR/HLC/BLC
- Illumination: 20m (1 High-Power IR LED)
- IP67
- Weight: 690g
- Power: DC12V/450mA
Specifications
| Specifications for: PV-DI-33K0AP-MVF-GY: Provision-ISR 3K Motorized Lens Large Dome/Turret Camera w/ 40m IR – Grey | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Video Input | 8Ch over Network |
| Output | HDMI (4K, 1080P), VGA (1080P, 1280x1024, 1024x768) |
| View Mode | Mirrored |
| Fish-Eye Dewarp | Web Only |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch -; 8MP ; 4Ch -; 2MP |
| Audio | |
| Audio-specs-Input | 1CH RCA (Linear, 1k™) + IPC inputs |
| audio-specs-Output | 1CH RCA (2.0 Vp-p, 1 k™) + IPC outputs |
| Compression | G.711A/G.711U |
| Two Way Audio | Yes |
| Analytics | |
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal |
| Analytics Channels (IPC Based) | 8Ch (Requires supporting IPC) |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection (or their combinations) |
| Face Recognition Rate | N/A |
| Bandwidth | |
| Incoming | 80Mbps |
| Outgoing | |
| Video | |
| Image Sensor | 1/2.5" 3K CMOS Sensor |
| Image Format | 16:9 |
| Effective Pixels | 2944 x 1656 |
| Scanning System | Progressive |
| Min. Illumination | Color：0.01lux @F1.2, AGC ON B/W：0lux with IR |
| Day & Night | True Day&Night-ICR |
| Day & Night Modes | Ext/Auto/Day/Night |
| Compression | |
| Resolution | 3K: 2592x1944 AHD/TVI 4MP: 2560x1440 AHD/TVI/CVI CVBS: 700TVL |
| Frame Rate | 3K @ 20FPS, 4MP @ 25FPS |
| Image | |
| Backlight Compensation | BLC/HLC |
| S/N Ratio | ≥52dB (AGC OFF) |
| Privacy Zone | no |
| Noise Reduction | 3D-DNR |
| Image Enhancement | Digital WDR, BLC, HLC |
| On Screen Data | |
| CoC Support | Yes |
| OSD Menu | Available via CoC Only |
| Lens | |
| Field of View | 2.8-12mm Mega-Pixel Motorized Vari-Focal (104°-38°) |
| Iris | DC Iris |
| Lens Mount | ø14 Mount |
| Connectivity | |
| Video Output | 3K / 4MP (Selected by OSD Menu) AHD/TVI/CVI/CVBS + PAL/NTSC (Selected by OSD Menu) |
| Audio Connectivity | Built-in Microphone |
| Housing | |
| Illumination | 20m (1 High-Power IR LED) |
| Bracket | 3-Axis Bracket |
| Protection Rate | IP67 |

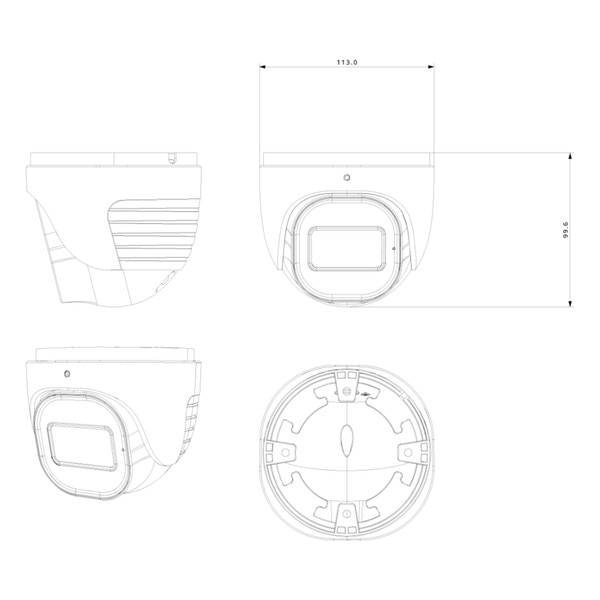

| Dimensions | Φ113*99.6mm |
| Weight (gross) | 690g |
| Power | DC12V/450mA |
| Work Environment | -30°C ~ 50°C，10% ~ 90% humidity |
