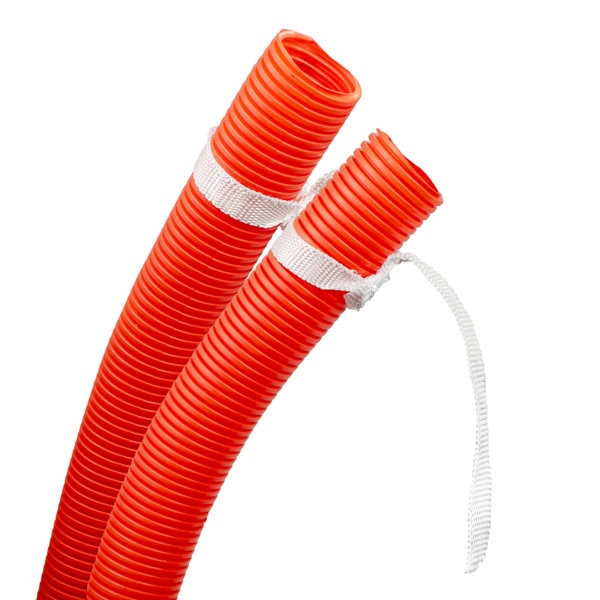

SynConnect 1-1/4" x 100ft Corrugated Flexible Conduit c(UL)us Orange

SKU: SC-FC1-25-100

NO INTERNAL PULL TAPE

Notes

This conduit does not have internal pull tape or cord

Details

Features
  • Manufactured from flexible HDPE
  • Rugged corrugated design is flexible and light weight, yet provides excellent crush resistance
  • Outstanding long term cable protection from shifting ground, rock and root impingement
  • Provides a permanent pathway, simpifies future cable repairs or replacement
  • FOOTAGE MARKINGS: Sequential foot or meter markings.
  • Available in Riser for behind the wall applications
  • Installation Applications: Existing Conduit, Direct Burial, Aerial, Indoor, Short Runs
  • Market Applications: Telecom, CATV, Enterprise, C&I, Energy, DOT
Specifications
Specifications for: SC-FC1-25-100: SynConnect 1-1/4" x 100ft Corrugated Flexible Conduit c(UL)us Orange
Size1.25"
ColourOrange
Nominal I.D.1.417"
Nominal O.D.1.673"
Weight0.067LB/FT
Bend Radius210MM±10MM
Brittleness Temp125°C
Coil Length100FT
Fire RatingCMG/FT-4
Resources

PDF Icon Download SC-FC1-25-100 Spec Sheet



Globe Icon Visit SyncProducts.com
