Senko LC Connector SM PC 250/900um – 12pcs pkg (Blue)
Details
Details
Summary

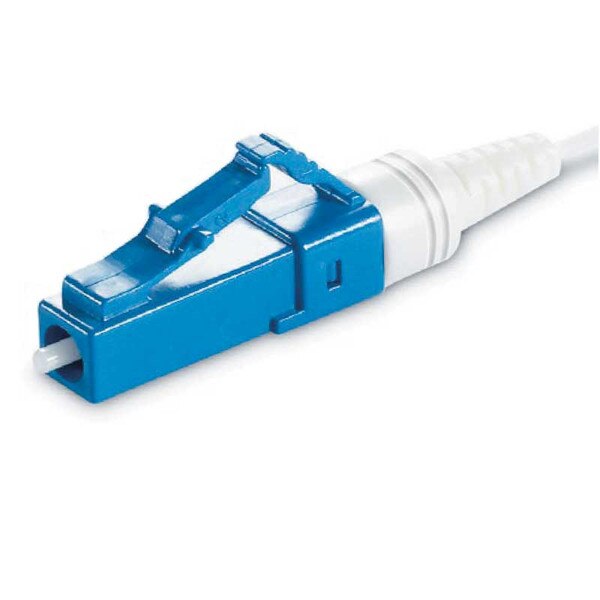

XP FIT PLUS LC Connector – Blue
Overview
The XP Fit Plus is a pre-polished, pre-assembled connector compatible with the standard LC connector. In place of epoxy, an internal mechanical grip gently but effectively holds the fiber in place and can be installed in under two minutes. Without polishing or adhesives, the XP Fit Plus makes field installations quick and easy, eliminating the need for epoxy curing and hand polishing at the work site.
Specifications
| Specifications for: SE-951-191-111: Senko LC Connector SM PC 250/900um – 12pcs pkg (Blue) | ||
|---|---|---|
| Specification | Singlemode | Multimode |
| For XP Fit Plus LC | Typical | |
| Insertion Loss | 0.2dB (PC) | 0.1dB |
| Return Loss | 55dB (PC) | 35dB |
| Durability | <0.1dB change, 500 matings | |
| Operating Temperature | -40°C to +75°C | |
| Tensile | TIA/EIA 568-C.3 | |
| Intermateability | IEC 61754-20 | |
