VSSL MX Series Single-zone, 2-Channel 1U Powered Amplifier with 140W

Details

Details

Summary

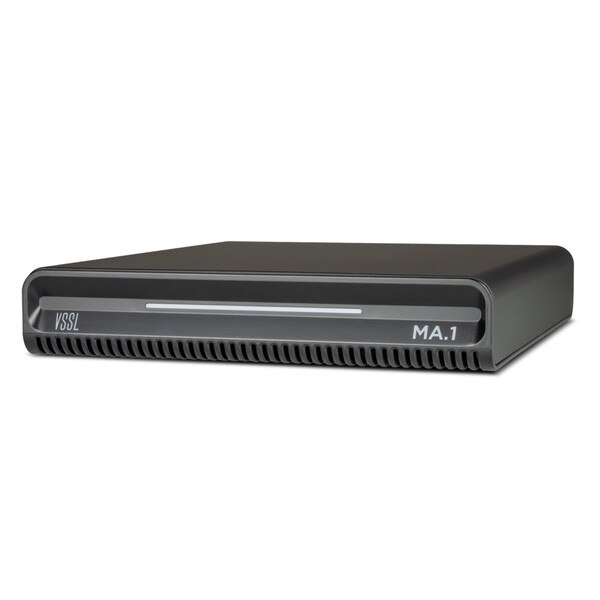

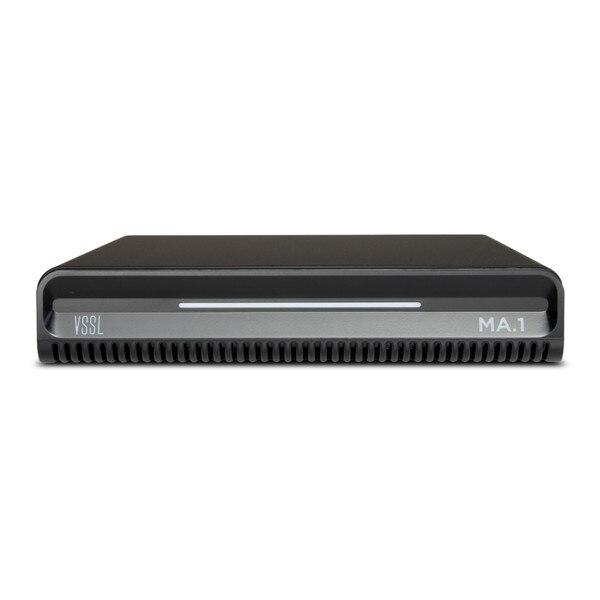

The VSSL MA.1 is a powerful, single-zone streaming amplifier built for the way you listen today. Delivering 140 watts per channel with modern connectivity like HDMI eARC, Wi-Fi 5, and Bluetooth LE Audio, the MA.1 makes it easy to enjoy incredible sound from any source in your home. Whether streaming your favorite playlist, connecting your TV, or integrating into a smart home system, the MA.1 brings performance, flexibility, and simplicity together in one sleek device.

  • Premium Streaming App
  • 140 Watts RMS
  • Works with VSSL Ecosystem
  • Native Streaming
  • Wireless inputs from AirPlay 2, Google Cast, Spotify Connect and Bluetooth
  • WiFi Certified (Wi-Fi 5 802.11 a/b/g/n/ac)
Overview

Experience incredible sound with the VSSL MA.1, a sleek, single-zone streaming amplifier delivering up to 140W per channel at 4Ω or 8Ω. Packed with the latest tech, including HDMI eARC, Wi-Fi 5, and Bluetooth LE Audio with Auracast, the MA.1 oers crystal-clear, high-resolution audio and over 50% better performance and 3x more power output over the previous generation. Designed with simplicity in mind, the MA.1 combines easy setup and intuitive operation with fast responsiveness. It integrates tightly with top streaming platforms like Apple Music, Spotify, YouTube Music, and more, allowing users to stream what they love with minimal eort. The MS.1 features full driver support for leading control systems, including Control4, Crestron, Elan, RTI, and URC, making it ideal for professional installations. As part of the VSSL ecosystem, the MA.1 connects eortlessly with other VSSL devices through the VSSL CNCT™ app, creating a unified whole-home audio experience. With VSSL NSYT™, a powerful remote management application, installers can access and troubleshoot any MX Series device from anywhere in the world, significantly speeding up service and delivering the pinnacle of customer experience. The VSSL MA.1 isn't just a new product—it's the beginning of a new era of distributed audio with the MX Series.

Features

Key Features

  • 125W per channel at 8Ω & 200W at 4Ω
  • HDMI eARC for seamless TV audio integration
  • Wi-Fi 6 + Bluetooth LE Audio with Auracast for faster, clearer wireless connections
  • On-board streaming: AirPlay 2, Google Cast, Spotify Connect,
  • Easy setup with VSSL CNCT™ app including multi-room and source sharing
  • Seamless integration with leading control platforms
Specifications
Specifications for: VSSL-MA-1: VSSL MX Series Single-zone, 2-Channel 1U Powered Amplifier with 140W
Zones1
Channels2
AmplifierClass D
Power125W @ 8Ω RMS
Power200W @ 4Ω RMS

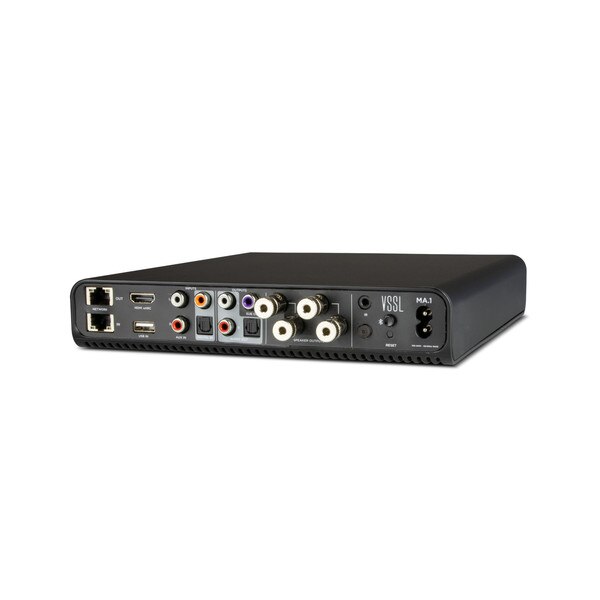

Inputs(1) Analog, (1) Optical, (1) Digital Coax, (1) HDMI eARC, (1) IR, (1) Network, (1) USB
Wireless InputsAirPlay 2, Google Cast, Spotify Connect, Bluetooth
Bluetoothv5.3, LE Audio
WiFiWi-Fi 5 802.11 a/b/g/n/ac
Outputs(1) Analog, (1) Optical, (1) Subwoofer, (1) Network
Sub OutRCA, Adjustable crossover 40–120 Hz or bypass for full range
EQ5-band adjustable
S/N Ratio>98 dB A-weighted
Frequency Response20–20,000 Hz
Onboard Music ServicesPandora, SiriusXM, TuneIn, and more
Dimensions8.7" W × 1.6" H × 10.6" D (220 mm W × 40 mm H × 270 mm D)
Weight3.7 lbs (1.7 kg)
Power Requirements100–240V ~ 50/60V 100W
