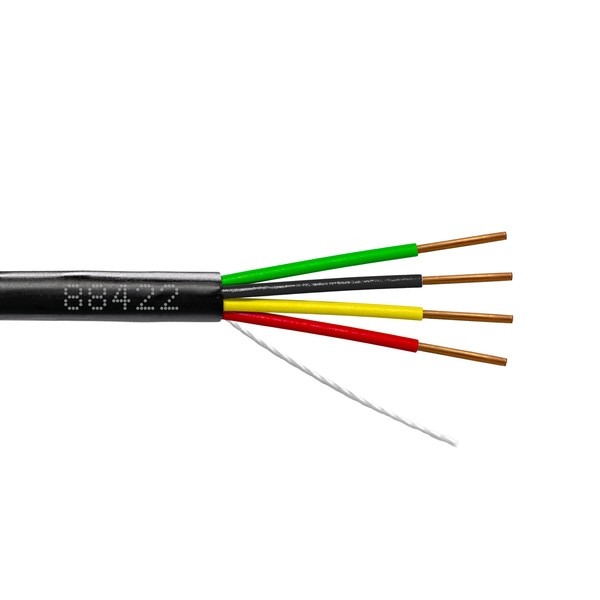

Provo Type "Z" Outdoor Direct Burial 22-4c SOL BC RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Conductors Twisted
- SR PVC Insulation
- UV Resistant High Density Polyethylene Jacket – Black
- -40° C +80° C
- Rip Cord
- Colour code: Red/Green/Yellow/Black
Specifications
| Specifications for: 88422: Provo Type "Z" Outdoor Direct Burial 22-4c SOL BC RoHS – Black JKT | |
|---|---|
| Conductors | 4c |
| Gauge (AWG) | 22 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | SR PVC |
| Jacket Type | HDPE |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.165 |
| Weight (lb) | 18 |
| Flame Test Rating | na |
| Voltage | 300 |
| MHz | na |
| Temperature | -40 to 80 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Red Green Yellow Black |
| Category | Outdoor Direct Burial Type "Z" |
