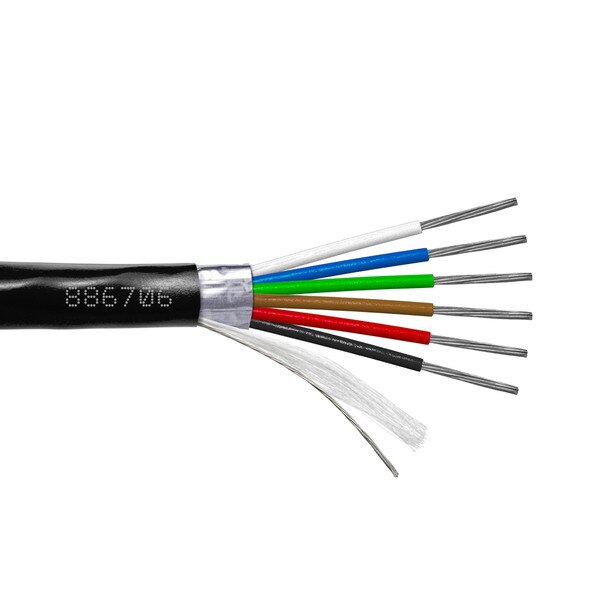

Provo Multi-Conductor Outdoor Direct Burial 22-6c STR TC FL SH RoHS – Black JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Conductors Twisted
- SR PVC Insulation
- 100% Aluminum Foil Shield
- Stranded Tinned Copper Drain Wire
- High Density UV Resistant Polyethylene Jacket – Black
- -40° C +80° C
- Colour Code: Chart Number 1
Specifications
| Specifications for: 886706: Provo Multi-Conductor Outdoor Direct Burial 22-6c STR TC FL SH RoHS – Black JKT | |
|---|---|
| Conductors | 6c |
| Gauge (AWG) | 22 |
| Conductor Type | 7x30 Stranded Tinned Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Stranded Tinned Copper |
| Insulation Type | SR PVC |
| Jacket Type | HDPE |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.210 |
| Weight (lb) | 28/14 |
| Flame Test Rating | na |
| Voltage | 600 |
| MHz | na |
| Temperature | -40 to 80 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 1 |
| Category | Multi-Conductor Outdoor Direct Burial Foil Shielded |
