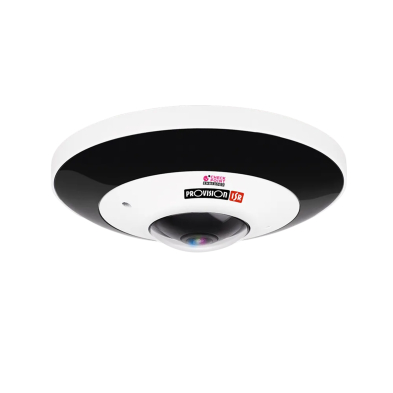

Provision-ISR 12MP Fixed Lens Fish-Eye Camera with IR LED and DDA1 Analytics

Item Code: PV-FEI-2120IPN

PLEASE CALL FOR STOCK AVAILABILITY

Ideal for large open spaces, this 12MP Panoramic Fisheye camera can capture footage at a wide angle of 360°. The camera includes a built-in microphone, Digital WDR, BLC, HLC, and 3D-DNR for poor light conditions. Our Fisheye camera FEI-2120IPN can do the work of multiple fixed focus lens cameras.

EA
Comments or instructions

Features

Features

  • Sensor: 1/1.7" CMOS (3000 x 3000 – 16:9)
  • Resolution: 3000×3000 (1:1) 25/30FPS (12MP)
  • Lens: 1.65mm (360° for Ceiling Mount / 180° For Wall Mount)
  • True Day&Night – ICR
  • Illumination: 15m (4 High-Power IR LEDs)
  • Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
  • Quantum IoT Nano agent by Check Point™
  • AI: DDA Human Only in Ceiling Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting, Heat Map
  • AI: DDA all objects: in Wall/Desktop Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting
  • Digital WDR, BLC, HLC, ROI
  • SD Card: Event/Schedule Record (Up to 256GB)
  • Alarm in + Alarm out
  • Built-In Microphone + Audio Input + Audio Output
  • ONVIF: Profile S/G
  • Water Proof: IP67
  • Weight: ~530g
  • Power: DC12V/~700mA / PoE/~10.5W

Specifications

Specifications

Specifications for: PV-FEI-2120IPN: Provision-ISR 12MP Fixed Lens Fish-Eye Camera with IR LED and DDA1 Analytics
3rd Party Cyber Protection
GeneralQuantum IoT Nano agent by Check Point™
Protection MethodsShell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
NDAA Compliant
NDAA CompliantYes
Video
Image Sensor1/1.7" CMOS (3000 x 3000 – 16:9)
Effective Pixels3000x3000 (1:1)
Electronic Shutter1/3s ~ 1/100000s
Day & NightICR
Min. Illumination0.01lux (@F2.0, AGC on) 0lux with IR on
Audio
Audio compressionG.711A/G.711U
CommunicationTwo-Way Audio
Image SettingsAWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image EnhancementDigital WDR, BLC, HLC, ROI
Noise Reduction3D-DNR
Image Orientation360
Privacy ZoneYes
Events and Analytics
AnalyticsAI: DDA Human Only in Ceiling Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting, Heat Map AI: DDA all objects: in Wall/Desktop Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting
Motion DetectionYes
Compression
Resolution12MP(4000x3000), 9MP(3000x3000), 5MP(2160x2160), 2MP(1080x1080), 960x960, 720×720, 480×480
Frame Rate1-25/30FPS
Video CompressionH.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-StreamMode1: Fisheye… (and full details as listed on site)
Bit Rate128Kbps ~ 16Mbps@H.265 / 128Kbps ~ 16Mbps@H.264
Encode ModeVBR/CBR
Image QualityFive levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)1.65mm (360° for Ceiling Mount / 180° For Wall Mount)
IrisFixed Iris
Lens MountM12 Mount
Network
User AccessSupports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
Network ProtocolIPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
Remote MonitoringIE Browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet100Mbps
ONVIFProfile S/G
Connectivity
NetworkRJ45 (+PoE)
Audio ConnectivityBuilt-In Microphone + Audio Input + Audio Output
AlarmAlarm in + Alarm out
SD CardEvent/Schedule based Main/Substream recording (Up to 256GB)
WiegandN/A
PowerDC Socket
Analog Video OutputCVBS (BNCx1)
Housing
PoEYes
Illumination15m (4 High-Power IR LEDs)
Power SupplyDC12V/~700mA / PoE/~10.5W
Protection RateWater Proof: IP67
Work Environment-30°C~60°C, 10%~90% Humidity
BracketNo
DimensionsΦ130mm×46mm
Weight (gross)~530g
Hard Reset ButtonYes
