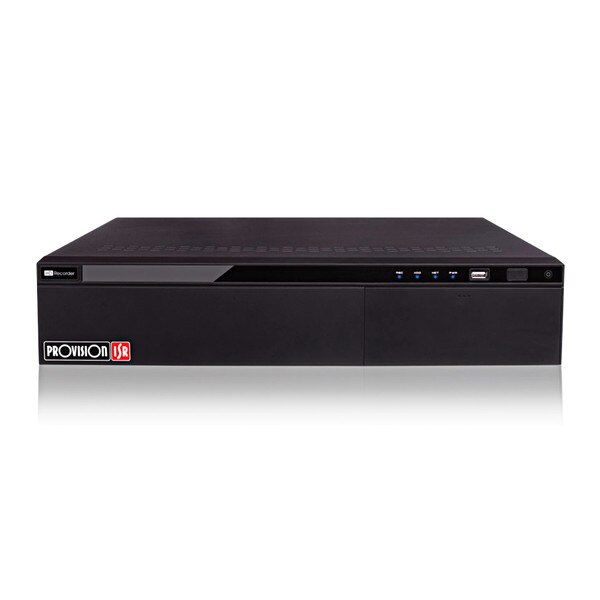

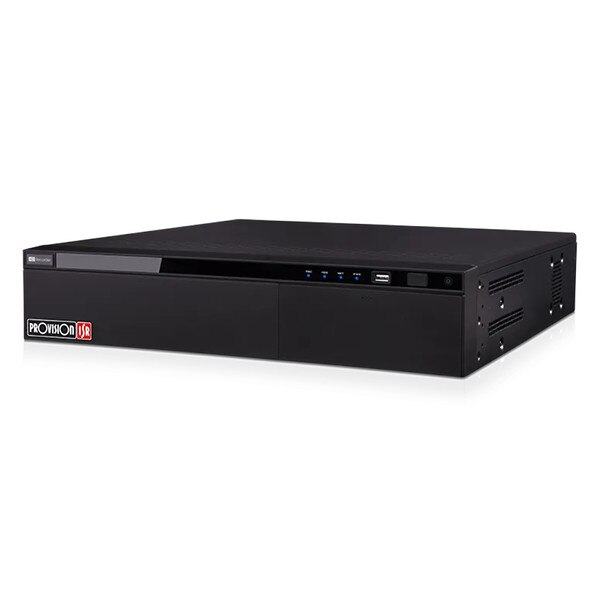

Provision-ISR H.265 Stand Alone NVR 32CH PoE 12MP/20fps Facial Recognition – 2U Case
Notes
Hard disk drive not included with this device. Please consult this device's specifications for it's recording and HDD capacity.
Try our Storage Capacity Calculator to determine the best drive(s) for your needs.
You can choose from our selection of video-surveillance-grade hard drives here.
Details
Summary
32CH 12MP NDAA-Compliant Face Recognition PoE NVR with alarms
Overview
Provision-ISR NVR12-32800FN-16P(2U) is a high-performance network video recorder with an integrated 16-channel PoE switch for high-definition surveillance. The device features 16 alarm inputs + 4 alarm outputs and supports Face Recognition and Advanced Video Analitycs (DDA). This easy-to-install solution is suitable for big-sized installations (up to 32 channels). It also complies with NDAA demands. Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.
CCTV Analytics Demonstration
Features
Video:
- Input: 32 Channel Support
- 32 Channel PoE / Standard Network Connection (Via 32 x RJ-45 / Network)
- 16 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI1 (4K 30/60Hz, 1080P, 1280×1024), HDMI2 + VGA (1280×1024, 1080P)
Bandwidth:
- Incoming: 320Mbps
- Outgoing: 256Mbps
Decoding Support:
- H.265S/H.265+/H.265/H264
Analytics:
- Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal.
- Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.
Recording:
- 32CH 12MP Real-Time
- FPS: 800 (PAL) / 960 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 16+IPC
- Output: 4+IPC
Storage:
- 8 x SATA (Up to 10TB each)
- 1 x E-SATA (Up to 10TB each)
USB Port:
- 1 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.1.0.70155 and are subject to firmware version changes.
Specifications
| Specifications for: PV-NVR12-32800FN16P2: Provision-ISR H.265 Stand Alone NVR 32CH PoE 12MP/20fps Facial Recognition – 2U Case | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Video Input | 32Ch over Network (out of which up to 16Ch PoE Direct Connection) |
| Output | HDMI1 (4K 30/60Hz, 1080P, 1280x1024), HDMI2 + VGA (1280x1024, 1080P) |
| View Mode | Independent*, Up to 32ch on monitor1 + 9ch on monitor2 |
| Fish-Eye Dewarp | Local + Web |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 12MP ; 4Ch – 4MP ; 9-32Ch – D1 |
| Audio | |
| Input | 1CH RCA (Linear, 1kΩ) + IPC inputs |
| Output | 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC Outputs |
| Compression | G.711A/G.711U |
| Two Way Audio | Yes |
| Analytics | |
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal. Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition. |
| Analytics Channels (IPC Based) | 32Ch (requires supporting IPC) |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (IPC does Detection) (or their combinations) |
| Face Recognition Rate | 18 Faces per second (6Ch supported) |
| Bandwidth | |
| Incoming | 320Mbps |
| Outgoing | 256Mbps |
| Record/ Main Stream | |
| Real-Time Recording | 32CH 12MP Real-Time |
| Record Type | Video / Video + Audio |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS, and all of its combinations |
| 16MP | N/A |
| 12MP | 960FPS(NTSC)/800FPS(PAL) |
| 8MP | 960FPS(NTSC)/800FPS(PAL) |
| 5MP and lower | 960FPS(NTSC)/800FPS(PAL) |
| Master stream over network | Up to 32CH@Recording resolution |
| Substream | |
| Resolution substream | Depends on IPC |
| Remote view | |
| Max Channel View | 160Ch (Limited to Outgoing Bandwidth Capacity) |
| Remote Applications | |
| User Access | 128 Users online with Professional Autorithy Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View/Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Playback | |
| Local | 16Ch |
| Remote | 16Ch |
| Search Mode | DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS |
| Backup | |
| USB | 1 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm | |
| Alarm-in | 16+IPC |
| Alarm-out | 4+IPC |
| Storage | |
| HDD | 8 |
| E-Sata Support | 1 |
| RAID | N/A |
| PTZ | |
| Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | Yes (C06 Keyboard Connection) |
| Network | |
| Ethernet | 2x1000/100/10Mbps self-adaptive Ethernet interface |
| Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12) |
| PoE | |
| PoE Ports | 16xRJ45 |
| Speed | 10/100Mbps (10Mbps Under CCTV Mode) |
| Standard | PoE (IEEE802.3AF/AT) |
| CCTV Mode | Yes (Up to 200m and 10Mbps bandwidth) |
| Total Power | 150W (Avarage 9.3W per Channel) |
| Max. Power Output (Per Ch.) | ~25.5W |
| Others | |
| Power Supply | AC100-240V |
| Power consumption (No HDD) | 30W |
| Dimension | W445xD436xH90mm |
| Operation Temperature | 0°C~50°C |
