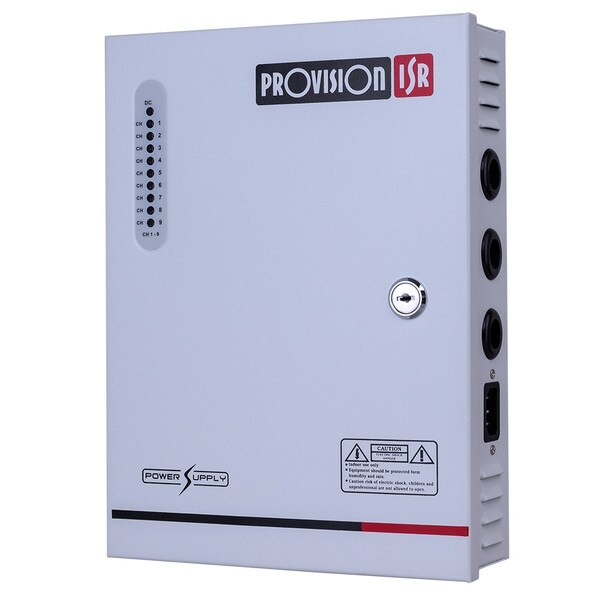

Provision-ISR 9ch 12v10a Professional Power Supply
Details
Details
Summary
9CH Power Supply
- DC12V
- 10 Amp
Features
- High efficiency and environmental friendly design
- Optimal design for easy installation
- Stable power signal to support clear images
- Over-current protection
- “Over-voltage” output protection
- Short circuit protection
- Lock
- Individual Status LED for each Channel
- Thermal Fuses
Specifications
| Specifications for: PV-PR-10A9CH: Provision-ISR 9ch 12v10a Professional Power Supply | |
|---|---|
| Output Terminals | 9 Ports |
| Input Voltage | AC100~240V |
| Frequency | 47~63Hz |
| Output Voltage | DC12V |
| Output Current | 10Amp |
| Output Volt-Regulation Protection | DC11~15V |
| Over Current Protection | 6A ±5% |
| Ripple & Noise | ≤ 120mVp-p |
| Efficiency | ≥ 85% |
| Backup Battery Support | No |
| Housing | Power Box |
| Dimensions | 290 x 220 x 70mm |
| Weight | 2.45 Kg |
