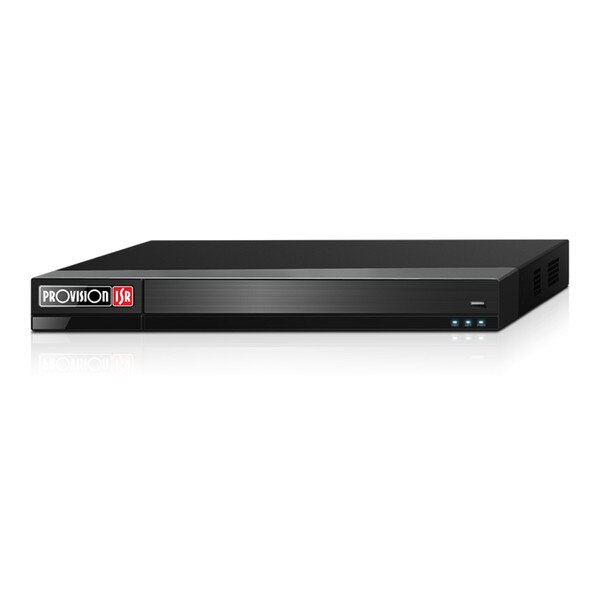

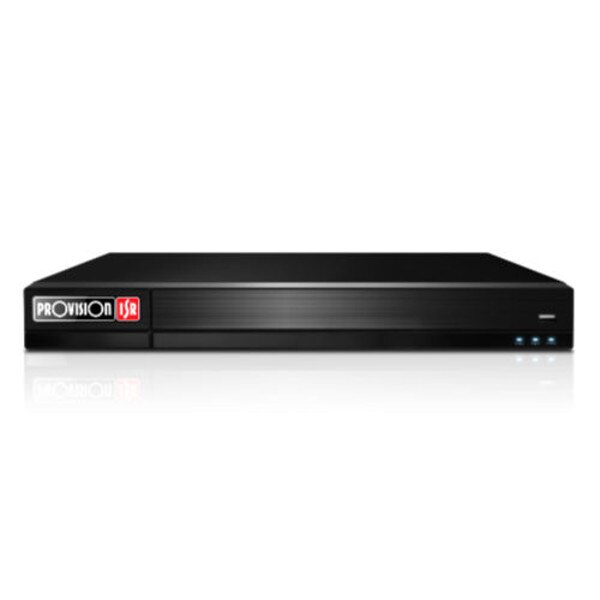

Provision-ISR H.265 Stand Alone NVR 16CH 12MP at 25fps Facial Recognition – 1U Case
Notes
Hard disk drive not included with this device. Please consult this device's specifications for it's recording and HDD capacity.
Try our to determine the best drive(s) for your needs.
You can choose from our selection of
Details
Summary
16CH 12MP NDAA-compliant Face Recognition NVR with Alarms
Overview
Provision-ISR’s NVR12-16400FAN(1U) is a high-performance network video recorder supporting Face Recognition and advanced Video Analytics (DDA). The device, suitable for small-sized installations (up to 16 channels), features 8 alarm inputs + 8 alarm outputs and provides you with everything you need for a trouble-free CCTV project. This model complies with NDAA demands.
CCTV Analytics Demonstration
Features
- Video Input: 16 Channels
- Video Output: HDMI – 4K
- VGA Recording:
- 16CH 12MP Real-Time
- FPS: 400 (PAL) / 480 (NTSC)
- Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
- Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
- Alarm:
- Input: 8+IPC
- Output: 4+IPC
- Storage: 2 x SATA (Up to 10TB each)
- Network: 2 x RJ-45: 10/100/1000Mbps
- PTZ/Keyboard:
- Network PTZ Support
- 1 x RS-485 Keyboard Support
- Power Supply: 12VDC/4A
- Analytics:
- AI by IPC:
- All Analytics Supported by the camera
- AI By NVR:
- Up to 2Ch DDA1 (Sterile Area/Line Crossing) or
- Up to 2Ch Face Detection + Recognition or
- Up to 6Ch Face Recognition Based on FW
- Version: v1.4.10
- Features subject to firmware version changes
- AI by IPC:
Specifications
| Specifications for: PV-NVR12-16400FAN-1U: Provision-ISR H.265 Stand Alone NVR 16CH 12MP at 25fps Facial Recognition – 1U Case | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Video Input | 16Ch over Network |
| Output | HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280x1024, 1024x768) |
| View Mode | Mirrored |
| Fish-Eye Dewarp | Local + Web |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 12MP ; 4Ch – 4MP ; 9-16Ch – D1 |
| Audio | |
| Input | 1CH RCA (Linear, 1kΩ) + IPC inputs |
| Output | 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC outputs |
| Compression | G.711A/G.711U |
| Two Way Audio | Yes |
| Analytics | |
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal(Limited Support). Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition. |
| Analytics Channels (IPC Based) | 16Ch (Requires supporting IPC) |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (or their combinations) |
| Face Recognition Rate | 18 Faces per second (6Ch supported) |
| Bandwidth | |
| Incoming | 160Mbps |
| Outgoing | 160Mbps |
| Record/ Main Stream | |
| Real-Time Recording | 16CH 12MP Real-Time |
| Record Type | Video / Video + Audio |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| 16MP | N/A |
| 12MP | 480FPS(NTSC)/400FPS(PAL) |
| 8MP | 480FPS(NTSC)/400FPS(PAL) |
| 5MP and lower | 480FPS(NTSC)/400FPS(PAL) |
| Master stream over network | Up to 12CH@Recording Resolution |
| Substream | |
| Resolution substream | Depends on IPC |
| Remote view | |
| Max Channel View | 80Ch (Limited to outgoing Bandwidth Capacity) |
| Remote Applications | |
| User Access | 64 Users online with Professional Autorithy Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Playback | |
| Local | 16Ch |
| Remote | 16Ch |
| Search Mode | DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS |
| Backup | |
| USB | 2 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm | |
| Alarm-in | 8+IPC |
| Alarm-out | 4+IPC |
| Storage | |
| HDD | 2 |
| E-Sata Support | No |
| RAID | N/A |
| PTZ | |
| Connection | via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | Yes (C06 Keyboard Connection) |
| Network | |
| Ethernet | 2x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Configuration |
| Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12) |
| PoE | |
| PoE Ports | N/A |
| Speed | N/A |
| Standard | N/A |
| CCTV Mode | N/A |
| Total Power | N/A |
| Max. Power Output (Per Ch.) | N/A |
| Others | |
| Power Supply | 12VDC/4A |
| Power consumption (No HDD) | 20W |
| Dimension | 380 × 268 × 48.1 mm |
| Operation Temperature | 0°C~50°C |
