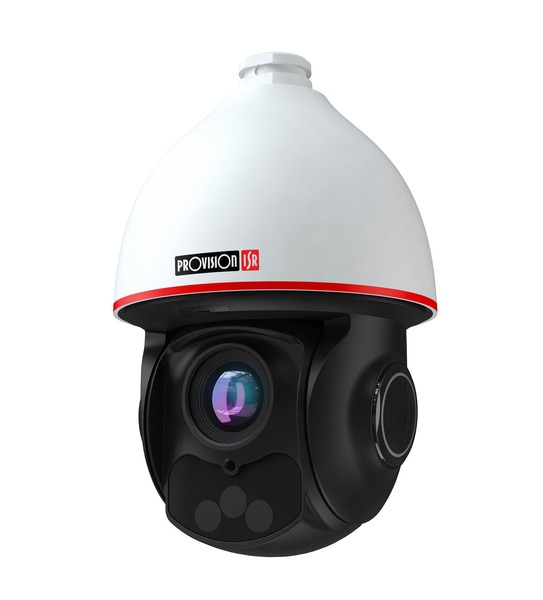

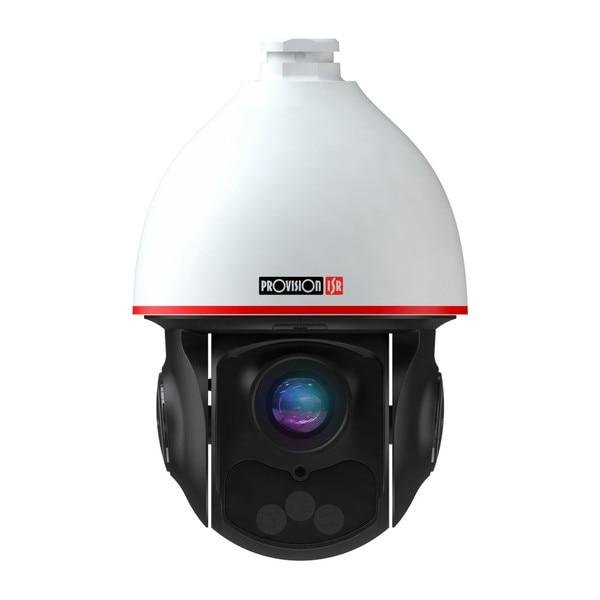

Provision-ISR 5" 4MP PTZ Eye-Sight IP 25x Optical Zoom w/ 150M IR Camera – White
Details
Details
Summary
The Z5-25IPE-4(IR) AI IP PTZ offers amazing video quality and features.
The Z5 provides full connectivity options and fast motor speed while keeping a sleek design.
It can be installed almost anywhere with the optional accessories and provide full compatibility with Provision-ISR's platform (Ossia NVRs, Ossia VMS, Provision Cam2 Mobile App)
Features
- 5" AI IP PTZ
- DDA™ Analytics with Auto-Tracking
- Face Recognition Analytics
- Smart IR Distance: 150m
- Preset speed of 80°/Sec (max)
- Preset accuracy up to 0.1°
- Endless 360° Pan Rotation
- 180° Continuous Tilt with Auto Flip
- H.265 Video Compression
- 300 Preset Position
- 4 Pattern, Scan Route and 8 Cruise Lanes
- Park Action
- Power-Off Memory
- Fully functional web-client
- 3D-DNR Noise Reduction
- IP66 Water-proof and Dust-proof
- SD Card Support
- PR-WB-Z bracket included
Specifications
| Specifications for: PV-Z5-25IPEN-4IR: Provision-ISR 5" 4MP PTZ Eye-Sight IP 25x Optical Zoom w/ 150M IR Camera – White | ||
|---|---|---|
| Camera Specification | ||
| Video | Image Sensor | 1/2.5” CMOS |
| Effective Pixels | 2560×1440 | |
| Sync System | Progressive Scan | |
| Electronic Shutter | 1/25~1/100,000s | |
| Day & Night | ICR | |
| Min. Illumination | Color: 0.01Lux@(F1.65, AGC ON), B/W: 0.002Lux@(F1.65, AGC ON), 0Lux with IR | |
| Audio | Audio compression | G.711A/G.711U |
| Communication | 2 Way Audio | |
| Lens | Optical Zoom | x25 |
| Digital Zoom | x16 | |
| Focal Length | 4.8mm (F1.65) - 120mm (F3.8) | |
| Aperture Range | F1.65 ~ F3.8 | |
| Focus | Auto/Manual | |
| Minimum Focus Distance | 1M~15M | |
| Horizontal Angle of View | 55°(wide) ~ 2.4°(tele) | |
| Image Enhancement | Image Settings | AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable |
| BLC/HLC | Yes | |
| WDR Range | DWDR | |
| EIS | Yes | |
| Defog | Yes | |
| Noise Reduction | 3D-DNR | |
| Image Orientation | Mirror/Flip | |
| Privacy Zone | Up to 4 square masks | |
| Motion Detection | Yes | |
| Compression | ||
| Video Compression | H.264/H.265/MJPEG | |
| Resolution and Streams | Main stream: 2560×1440 (4MP), 2304x1296 (3MP),1920x1080 (1080P),1280x720 (720P) Sub stream: 1280x720 (720P), 704x576 (D1), 352x288 (CIF) Third stream: 704x576 (D1), 480x240, 352x288 (CIF) | |
| FPS | 1-25/30FPS | |
| Bit rate | 1536Kbps ~ 7192Kbps@H.265 / 2048Kbps ~ 8192Kbps@H.264 | |
| Encode Mode | VBR/CBR | |
| Image Quality | Five levels under VBR; Free adjustment under CBR | |
| AI Features | ||
| Analytics | AI: DDA™ Sterile Area, DDA™ Line Crossing, DDA™ Object Counting, Face Recognition General: Camera Tampering | |
| Smart Tracking | Auto Tracking based on DDA™ (Human / Vehicle) | |
| Face Recognition | Up to 10 face detections and 3 face recognitions per second | |
| Face Database | Up to 10000 faces | |
| Network | ||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at) | |
| User Access | Supports simultaneous monitoring for up to 6 users with multi-stream real time transmission | |
| Network Protocol | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE | |
| ONVIF | Yes | |
| Remote Monitoring | Provision Cam2 Mobile App, Ossia VMS, IE Browsing | |
| PTZ Features | ||
| Pan Range | 360° (Endless) | |
| Tilt Range | -3°~183° (With Auto Flip) | |
| Pan Speed | Manual: 0.1~80°/s; Preset speed: 80°/s | |
| Tilt Speed | Manual: 0.1~120°/s; Preset speed: 120°/s | |
| Presets | 300 | |
| Patterns | 4 Tracks. Up to 3 minutes each | |
| Cruise | 8 group (16 Presets/group) | |
| Scan | Standard / Random (with left and right boundary) | |
| Power Off Memory | Yes | |
| Park Action | Preset/Cruise/Pattern/Auto Scan/Random Scan | |
| Schedule | Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan) | |
| 3D Control | Supported (Via Provision-ISR Devices) | |
| Housing | ||
| IR Distance | 150m | |
| Smart IR | Yes | |
| Protection Rate | IP66 | |
| Fan & Heater | Yes | |
| Dimensions | Ø 209mm x 328mm | |
| Weight (gross) | ~3.7kg | |
| Network | RJ45 | |
| Analog Video Output | No | |
| Audio Connectivity | 1Ch Input + 1Ch Output | |
| SD Card | Yes (microSD/SDHC/SDXC. Up to 256GB) | |
| RS-485 | No | |
| Alarm In | 1 Wet-Contact (Requires >0VDC Input) | |
| Alarm Out | 1 Dry Contact | |
| Power Supply | PoE+ (802.3at) / DC24V/3A / AC24V/3A (Not included) | |
| Power Consumption | Max 30W (With IR, Heater and Fan working) | |
| Work Environment | -30°C~50°C, 10%~90% Humidity (Cold start at - 20°C) | |
| Optional Brackets | PR-WB-Z Wall Bracket PR-CB-Z Ceiling Bracket PR-B50PB Pole Adapter PR-B50ECB External Corner Adapter | |
Download Provision-ISR's Bracket Matching System PDF
